(33.350.060) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE FLUID RESERVOIR, LINE

Запчасти Case IH OPTUM 300 CVT (33.350.060) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE FLUID RESERVOIR, LINE (33) - BRAKES & CONTROLS

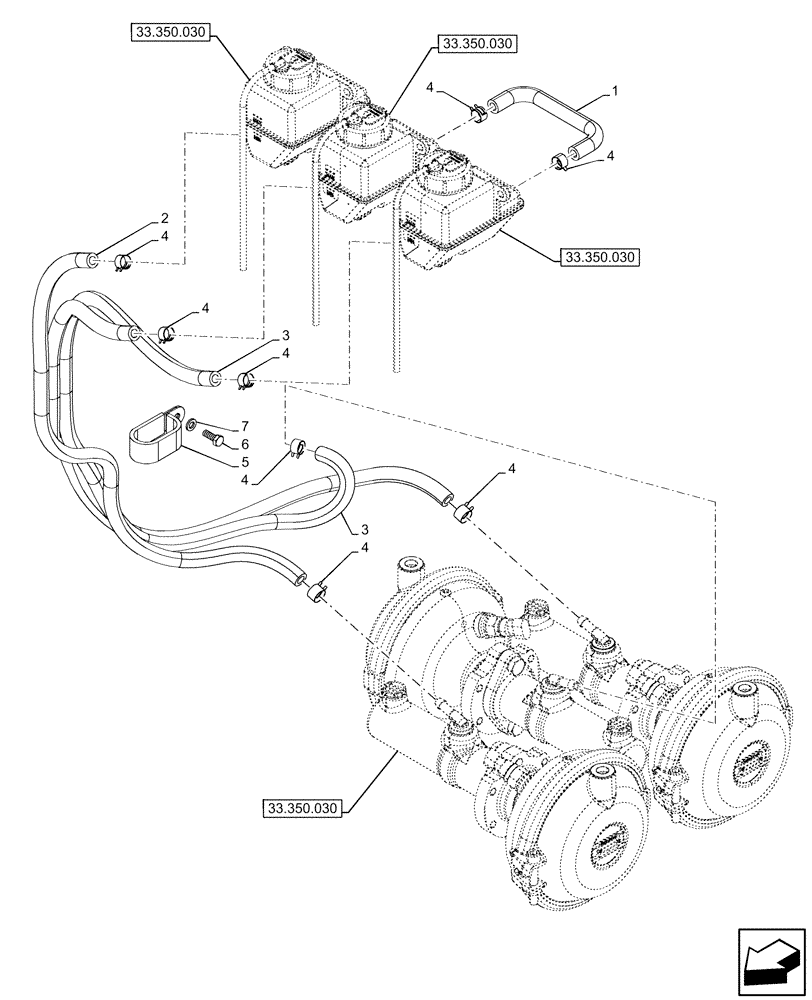

Схема запчастей Case IH OPTUM 300 CVT - (33.350.060) - VAR - 758035 - 758036 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE FLUID RESERVOIR, LINE (33) - BRAKES & CONTROLS
33.350.030
4
1
6
4
4
4
2
4
4
3
3
4
7
5
4
33.350.030
33.350.030
33.350.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47859503

HOSE,14.3mm ID x 108.5mm L

Oil Brake on Bottles

1шт.

2

47871174

HOSE,7.6mm ID x 620mm L

Oil Brake Reservoir

1шт.

3

47859502

HOSE,7.6mm ID x 880mm L

Oil Brake Reservoir

2шт.

4

82011382

HOSE CLAMP,15mm - 17mm

8шт.

5

82023568

CLAMP,2 Hoses

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
