Запчасти Case IH OPTUM 300 CVT (33.224.040) - VAR - 758038, 758039, 758041, 758042, 758044 - BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), COMPRESSOR, LINE (33) - BRAKES & CONTROLS

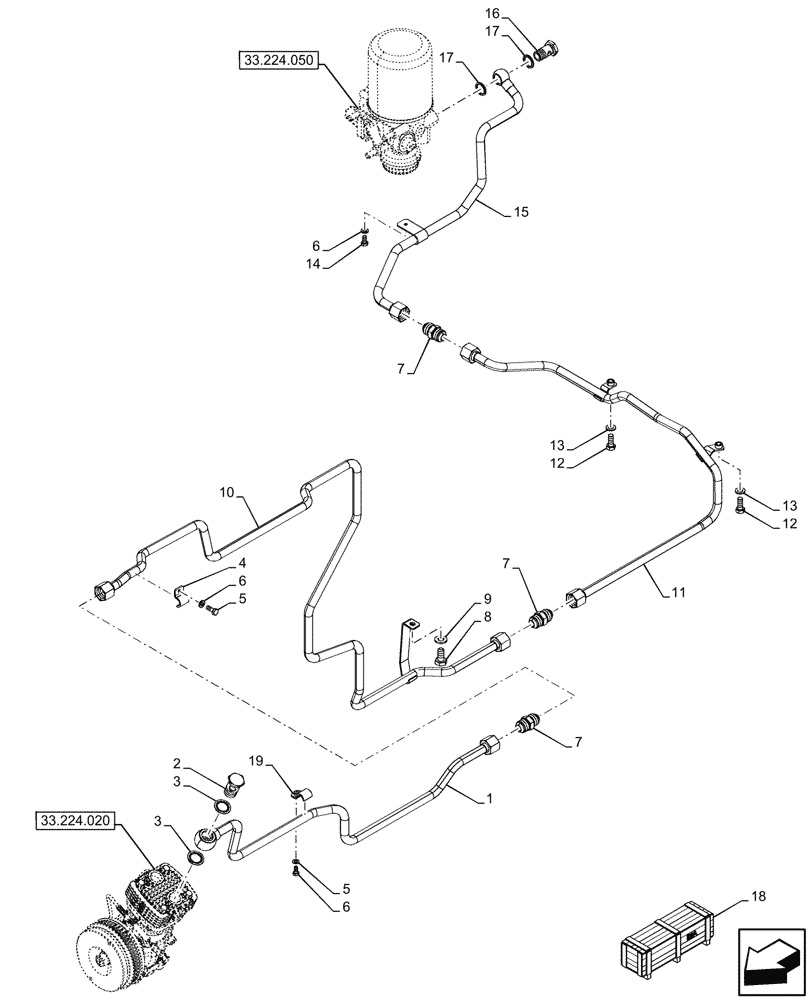

Схема запчастей Case IH OPTUM 300 CVT - (33.224.040) - VAR - 758038, 758039, 758041, 758042, 758044 - BRAKE, W/O ANTILOCK BRAKING SYSTEM (ABS), COMPRESSOR, LINE (33) - BRAKES & CONTROLS
33.224.020
11
5
1
12
18
19
7
13
17
16
4
8
17
6
2
6
12
3
5
7
15
7
13
6
14
10
9
3
33.224.050

Артикул

Название

Примечание

Количество

1

47806294

PIPE

from Compressor to APU

1шт.

2

84532344

BANJO BOLT,M26 x 1.5 x 38mm L

1шт.

3

87665420

SEAL,23.4mm ID x 36mm OD x 1.5mm Thk

2шт.

4

5193286

BRACKET

2шт.

5

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

3шт.

8

15970611

BOLT,Hex, M10 x 1.25 x 22mm, Cl 5.8, Full Thd

1шт.

9

11190570

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

10

47757398

PIPE

Air from Compressor to APU, Basildon Plant, Years: -15-JUN-16

1шт.

10

47935804

PIPE

Air from Compressor to APU, Basildon Plant, Start Year: 16-JUN-16

1шт.

10

47757398

PIPE

Air from Compressor to APU, St. Valentin Plant, Years: -03-APR-16

1шт.

10

47935804

PIPE

Air from Compressor to APU, St. Valentin Plant, Start Year: 04-APR-16

1шт.

11

47774811

PIPE

Air from Compressor to APU

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

15

47634980

PIPE

Air from Compressor to APU

1шт.

16

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

17

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

18

47926646

BRACKET

1шт.

19

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 1 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 23
