Запчасти Case IH OPTUM 300 CVT (33.220.040) - VAR - 758040, 758042 - TRAILER BRAKE VALVE, W/O ANTILOCK BRAKING SYSTEM (ABS), ITALY (33) - BRAKES & CONTROLS

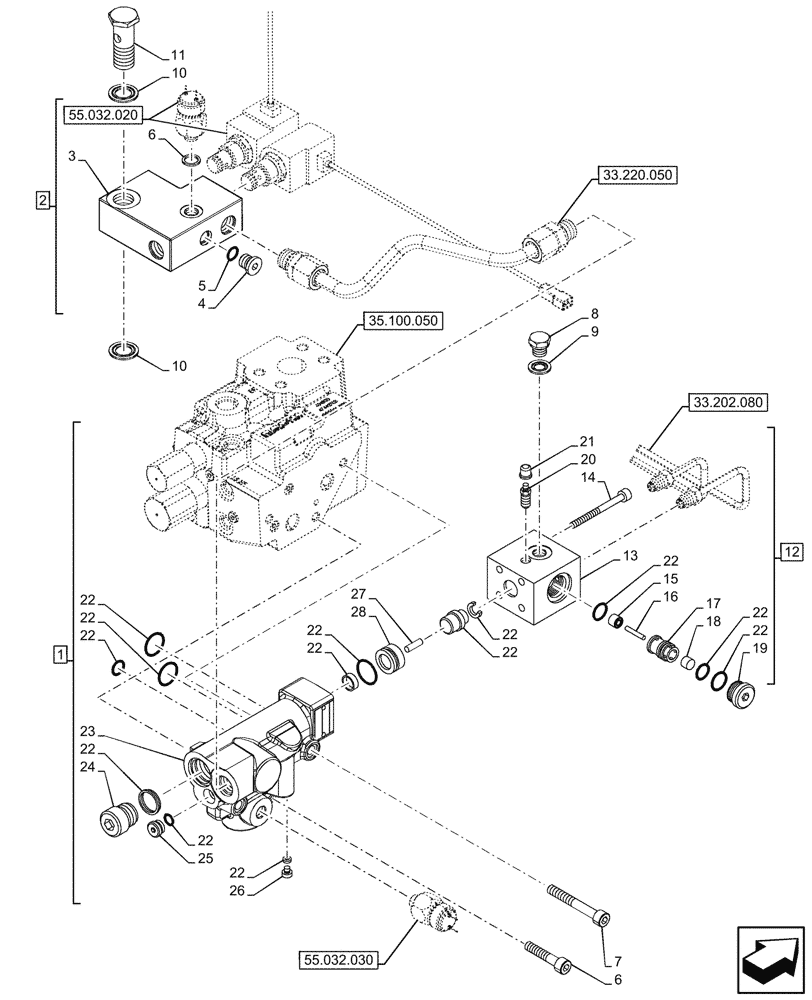

Схема запчастей Case IH OPTUM 300 CVT - (33.220.040) - VAR - 758040, 758042 - TRAILER BRAKE VALVE, W/O ANTILOCK BRAKING SYSTEM (ABS), ITALY (33) - BRAKES & CONTROLS
33.202.080
1
11
16
22
19
22
25
22
15
24
12
22
22
22
28
22
7
13
22
21
14
17
22
9
6
26
27
22
20
5
10
23
22
8
4
18
2
6
3
22
10
22
35.100.050
55.032.020
55.032.030
33.220.050

Артикул

Название

Примечание

Количество

1

87607363

BRAKE VALVE

ASSY, Incl 12 - 28

1шт.

2

47581244

MANIFOLD

ASSY, Incl 3 - 6

1шт.

See also Valve Components in Figure 55.032.020

1шт.

3

NSS

NOT SOLD SEPARAT

Manifold, Incl in 2

1шт.

4

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

5

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

6

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

7

14308920

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

8

47131496

PLUG,Hex, M12 x 1

1шт.

9

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

2шт.

11

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

12

87323111

PILOT VALVE

ASSY, Incl 13 - 21, 22 (Qty only for PN 87323111 servicing)

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Incl in 12

4шт.

15

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.

16

NSS

NOT SOLD SEPARAT

Giude, Incl in 12

1шт.

17

NSS

NOT SOLD SEPARAT

Piston, Incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.

19

NSS

NOT SOLD SEPARAT

Adaptor, Incl in 12

1шт.

20

NSS

NOT SOLD SEPARAT

Bleeding Screw, Incl in 12

1шт.

21

NSS

NOT SOLD SEPARAT

Cap, Incl in 12

1шт.

22

87323113

SEAL KIT

1шт.

23

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

26

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

27

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

Выбрано товаров: 30
