(33.220.010) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, W/O ANTILOCK BRAKING SYSTEM (ABS)

Запчасти Case IH OPTUM 300 CVT (33.220.010) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, W/O ANTILOCK BRAKING SYSTEM (ABS) (33) - BRAKES & CONTROLS

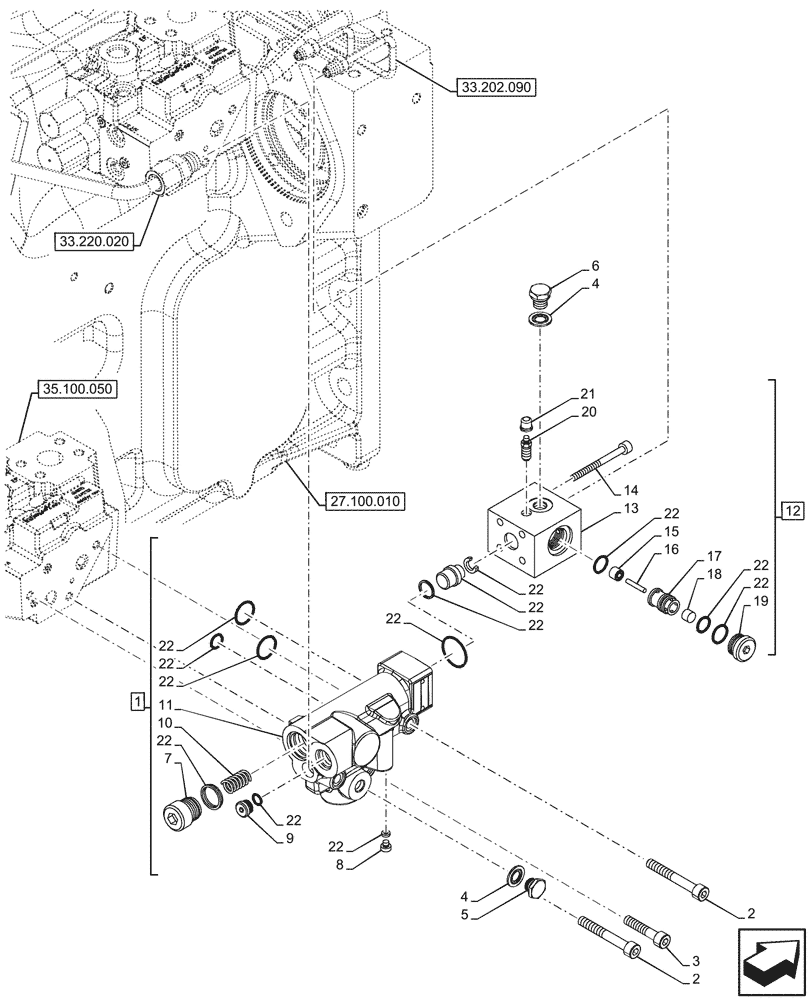

Схема запчастей Case IH OPTUM 300 CVT - (33.220.010) - VAR - 758037, 758039, 758044 - TRAILER BRAKE VALVE, W/O ANTILOCK BRAKING SYSTEM (ABS) (33) - BRAKES & CONTROLS
33.220.020
9
17
21
16
22
13
18
19
4
8
2
22
10
22
3
15
22
11
4
22
14
22
7
22
22
1
22
22
6
12
22
20
2
22
5
22
35.100.050
27.100.010
33.202.090
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47582718

BRAKE VALVE

ASSY, Incl 7 - 22

1шт.

2

14308920

HEX SOC SCREW,M8 x 60mm, Cl 8.8

2шт.

3

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

5

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

6

47131496

PLUG,Hex, M12 x 1

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

12

47583856

BRAKE VALVE

ASSY, Incl 13 - 21, 22 (Qty only for PN 47583856 servicing)

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Screw, Incl in 12

4шт.

15

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.

16

NSS

NOT SOLD SEPARAT

Giude, Incl in 12

1шт.

17

NSS

NOT SOLD SEPARAT

Piston, Incl in 12

1шт.

18

NSS

NOT SOLD SEPARAT

Dowel, Incl in 12

1шт.

19

NSS

NOT SOLD SEPARAT

Adaptor, Incl in 12

1шт.

20

NSS

NOT SOLD SEPARAT

Bleeding Screw, Incl in 12

1шт.

21

NSS

NOT SOLD SEPARAT

Cap, Incl in 12

1шт.

22

47583857

SEAL KIT

1шт.
