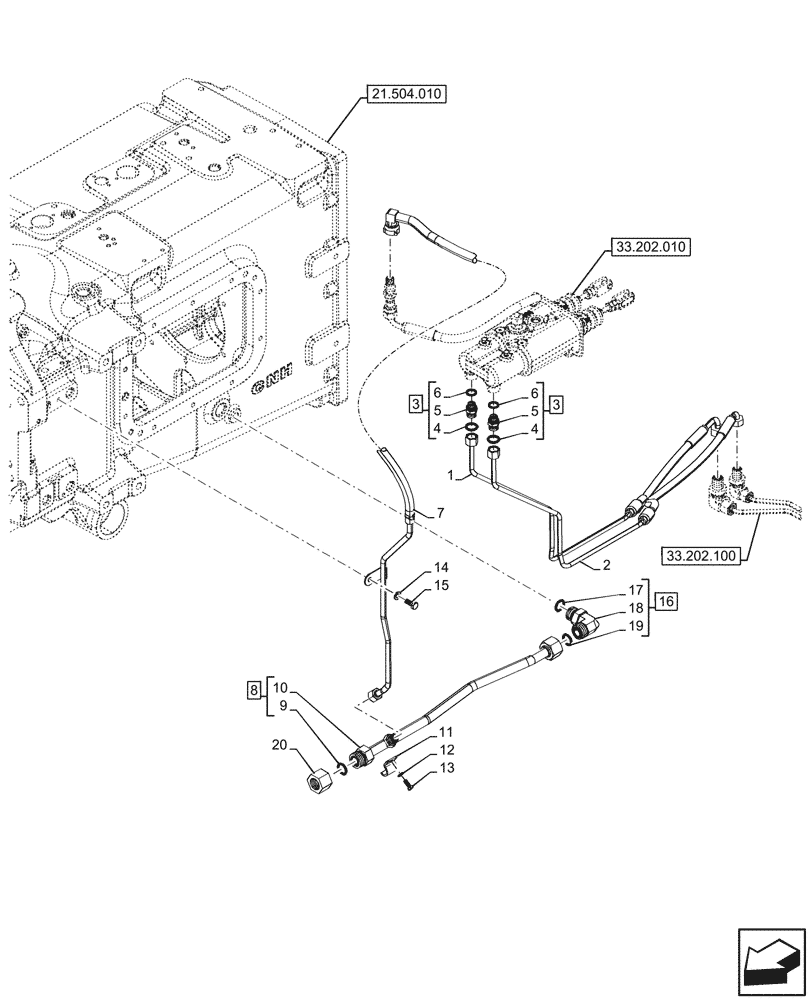

Запчасти Case IH OPTUM 300 CVT (33.202.020) - VAR - 391149, 758650 - BRAKE LINE, W/O ANTILOCK BRAKING SYSTEM (ABS), W/O FRONT PTO (33) - BRAKES & CONTROLS

1

47906914

TUBE

RH Brake

1шт.

2

47906916

TUBE

LH Brake

1шт.

3

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

2шт.

6

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

2шт.

7

47787244

BRAKE LINE

Brake RH, Return

1шт.

8

47787248

PIPE

ASSY, Oil Drain, Incl 9, 10

1шт.

9

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

NSS

NOT SOLD SEPARAT

Pipe, Incl in 8

1шт.

11

5193286

BRACKET

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

ASSY, Incl 17 - 19

1шт.

17

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

20

9847689

CAP,1-3/16" - 12 ORFS

1шт.
