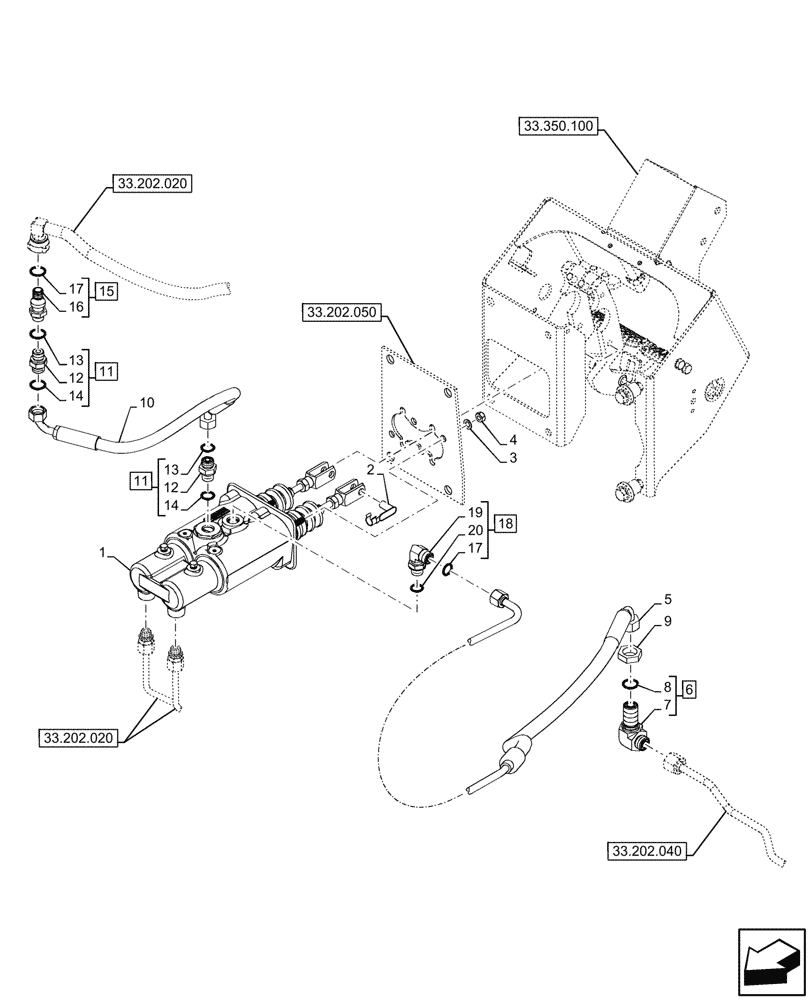

Запчасти Case IH OPTUM 300 CVT (33.202.010) - VAR - 758801, 758802, 758803, 758804, 758805, 758806, 758807 - BRAKE, MASTER CYLINDER (33) - BRAKES & CONTROLS

1

47480734

BRAKE BOOSTER

1шт.

2

87316560

PIN,10mm OD x 23mm L

2шт.

3

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

5

47732912

BRAKE LINE

from Master Cylinder to Accumulator Line

1шт.

6

86639079

ELBOW,90 Degree, 13/16"-16, ORFS, Blkhd

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 6

1шт.

8

9992898

O-RING

1шт.

9

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

1шт.

10

47732904

HOSE,8mm ID x 535mm L

from Master Cylinder to Brake Return Line

1шт.

11

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 12 (Qty 1), 13 (Qty 1), 14 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl 11

2шт.

13

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

15

82029114

FITTING,M16 x 1.5 x 51mm L

ASSY, Incl 16, 17 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

18

82015686

ELBOW,M16 x 1.5 x 37.5mm

ASSY, Incl 17 (Qty 1), 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 18

1шт.

20

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.
