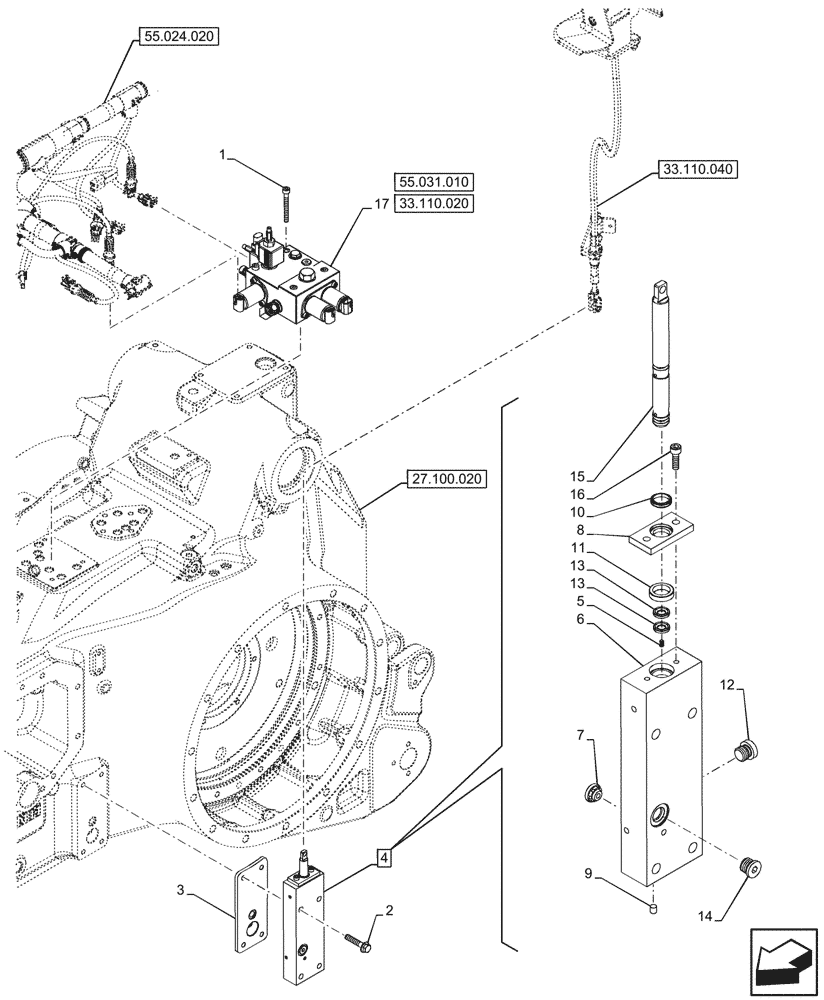

Запчасти Case IH OPTUM 300 CVT (33.110.010) - VAR - 758792 - PARKING LOCK (33) - BRAKES & CONTROLS

1

864-8070

HEX SOC SCREW,M8 x 70mm, Cl 8.8

4шт.

2

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

4шт.

3

47864928

GASKET,190.4mm L x 80.4mm W x 0.79mm Thk

1шт.

4

47890110

BRAKE VALVE

ASSY, Incl 5 - 16

1шт.

5

369263A1

PLUG,6mm OD x 4mm L

1шт.

6

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 4

1шт.

7

1994615C2

VALVE, CHECK

2шт.

8

47799709

MOUNTING PLATE

Retainer

1шт.

9

14536290

PLUG,6mm

6шт.

10

47800773

SEAL,16mm ID x 22mm OD x 4mm Thk

Seal

1шт.

11

47800772

SEALING RING,16mm ID x 24mm OD x 5.9mm Thk

Seal

1шт.

12

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

1шт.

13

47800771

SEALING RING,8.5mm ID x 16mm OD x 3mm Thk

Seal

2шт.

14

47890106

VALVE PRESSURE RELIE

28 bar

1шт.

15

47748712

ROD,16mm OD x 160.9mm L

1шт.

16

861-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

2шт.

17

47858110

HYDRAULIC MANIFOLD

ASSY

1шт.
