(31.146.020) - VAR - 758772, 758773, 759307, 759308 - FRONT PTO, COMPONENTS

Запчасти Case IH OPTUM 300 CVT (31.146.020) - VAR - 758772, 758773, 759307, 759308 - FRONT PTO, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF

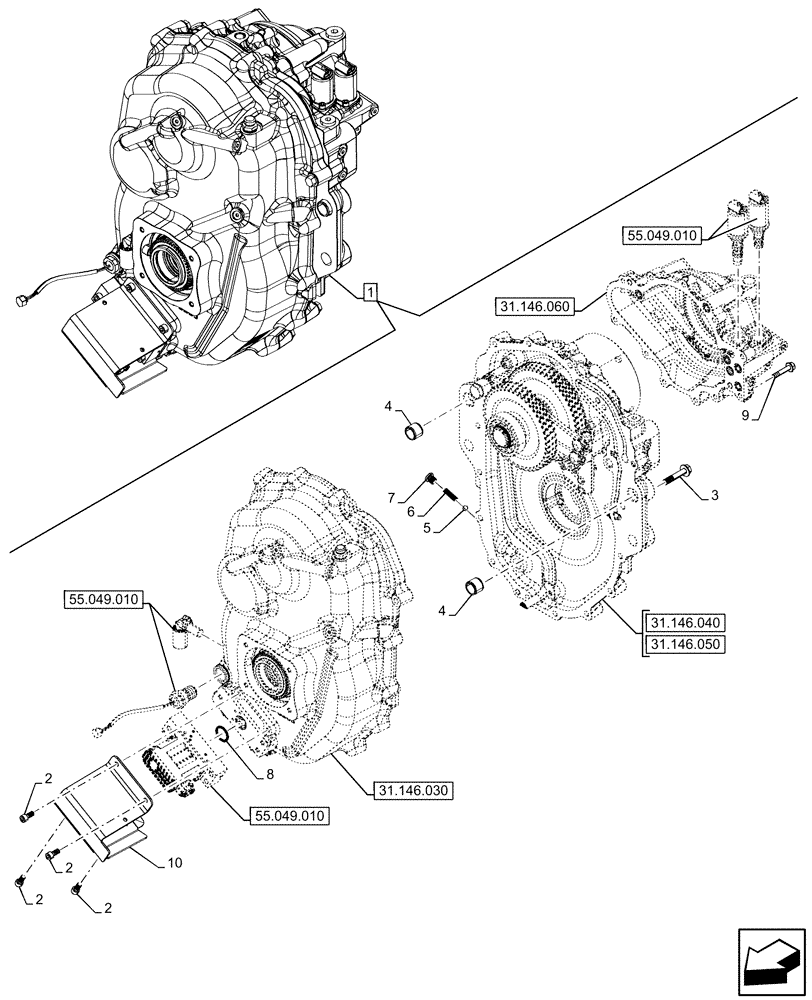

Схема запчастей Case IH OPTUM 300 CVT - (31.146.020) - VAR - 758772, 758773, 759307, 759308 - FRONT PTO, COMPONENTS (31) - IMPLEMENT POWER TAKE OFF
31.146.040
10
6
5
8
4
4
7
9
2
2
2
2
3
1
31.146.030
31.146.060
31.146.050
55.049.010
55.049.010
55.049.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47894651

FRONT PTO ASSY

CCW, Incl 2 - 10

1шт.

See Front PTO Components also in Figure 31.146.030, 31.146.040, 31.146.050, 31.146.060, 55.049.010

1шт.

2

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

3

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

16шт.

4

47662781

BUSHING,21mm ID x 26mm OD x 20mm L

2шт.

5

20063390

BALL,8.73mm OD

1шт.

6

4994342

SPRING,8mm OD x 30mm OAL

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

8

47422966

SEAL,23.52mm ID x 1.78mm Thk

1шт.

9

16287524

FLANGE BOLT,Hex, M8 x 40mm, Cl 8.8

11шт.

10

47648444

SHIELD

1шт.
