Запчасти Case IH OPTUM 300 CVT (27.120.090) - VAR - 758052, 758053 - REAR AXLE, FINAL DRIVE, PLANETARY GEAR, 112 INCH, W/ ANTILOCK BRAKING SYSTEM (ABS) (27) - REAR AXLE SYSTEM

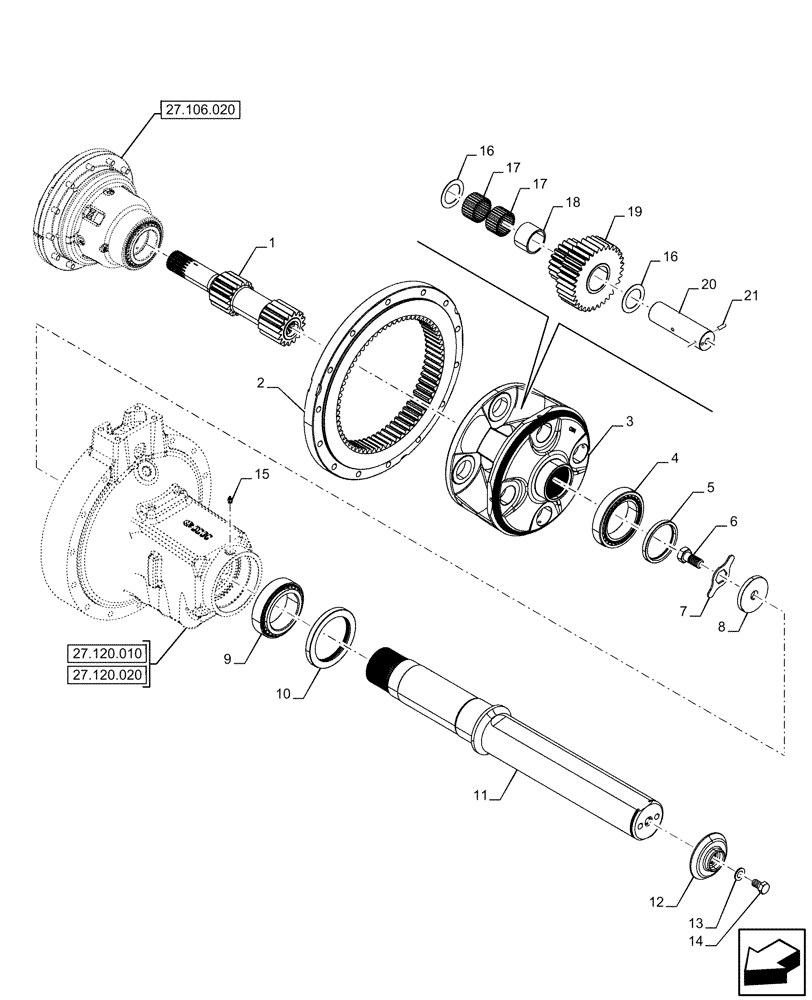

Схема запчастей Case IH OPTUM 300 CVT - (27.120.090) - VAR - 758052, 758053 - REAR AXLE, FINAL DRIVE, PLANETARY GEAR, 112 INCH, W/ ANTILOCK BRAKING SYSTEM (ABS) (27) - REAR AXLE SYSTEM
27.106.020
17
11
17
1
19
16
12
16
15
21
3
2
6
9
14
4
10
7
20
18
5
8
13
27.120.020
27.120.010

Артикул

Название

Примечание

Количество

1

47774105

SHAFT,47.5/77.3mm ID x 54.3/102mm OD x 447mm L, 16/20T

1шт.

2

47617431

RING GEAR,374.3mm ID x 394.7mm OD x 58mm Thk, 72T

1шт.

3

47847737

PINION CARRIER

1шт.

4

47520146

SPH ROLLER BEARING,110mm ID x 165mm OD x 35mm Thk

1шт.

5

47487234

SEALING RING,98mm ID x 120mm OD x 12mm Thk

1шт.

6

47795411

SCREW

1шт.

7

47847741

WASHER,70mm OD x 127mm L x 4mm Thk

1шт.

8

47847736

WASHER,25mm ID x 102mm OD x 12mm Thk

1шт.

9

47518981

SPH ROLLER BEARING,105mm ID x 160mm OD x 43mm Thk

1шт.

10

47487235

GASKET,130mm ID x 170mm OD x 16mm Thk

1шт.

11

47700152

AXLE

1шт.

12

47798621

COVER

1шт.

13

14497121

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

14

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20 x 2.5 x 35mm

1шт.

15

13407211

LUBE NIPPLE,M10 x 1

1шт.

16

47483150

SPACER,55.65mm ID x 82mm OD x 1.5mm L

8шт.

17

47468746

NEEDLE BEARING,55.65mm ID x 69.65mm OD x 41mm Thk

4шт.

18

47681851

SPACER,60mm ID x 69.65mm OD x 47.2mm L

4шт.

19

47436930

GEAR,33/20T

Ratio 20/33

4шт.

20

47436931

PIN,55.65mm OD x 191.5mm L

4шт.

21

838-3826

PIN,M8 x 26, Coiled

4шт.

Выбрано товаров: 21
