(25.122.090) - VAR - 758795, 758796 - FRONT AXLE, HYDRAULIC SYSTEM, CONTROL

Запчасти Case IH OPTUM 300 CVT (25.122.090) - VAR - 758795, 758796 - FRONT AXLE, HYDRAULIC SYSTEM, CONTROL (25) - FRONT AXLE SYSTEM

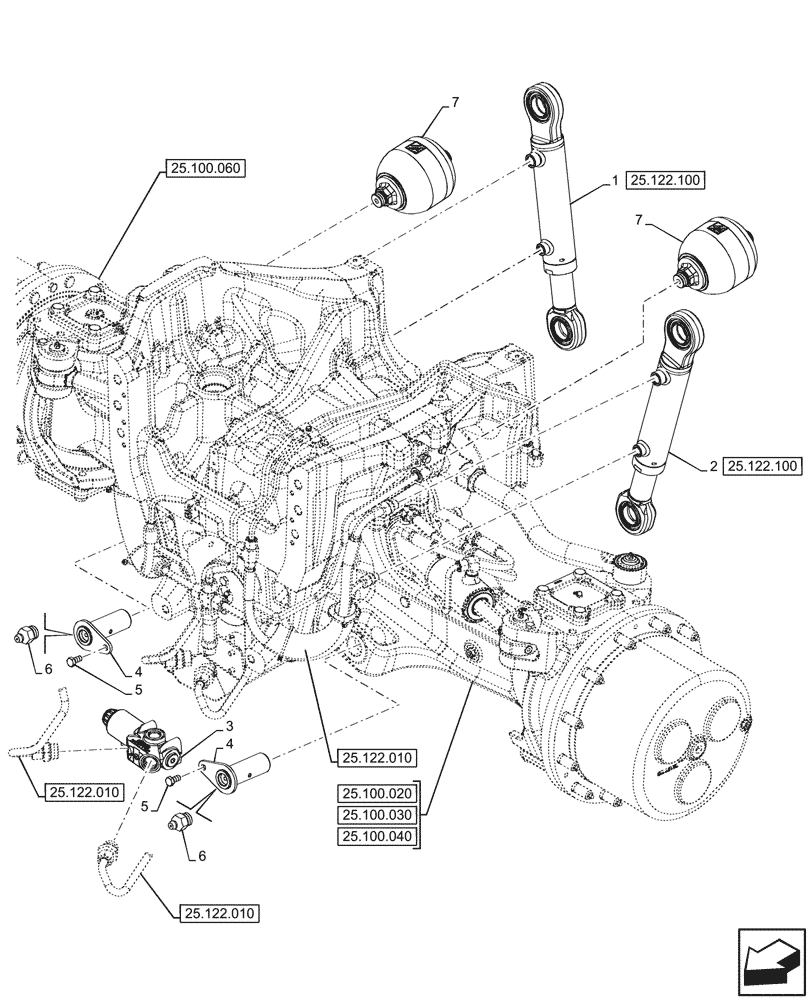

Схема запчастей Case IH OPTUM 300 CVT - (25.122.090) - VAR - 758795, 758796 - FRONT AXLE, HYDRAULIC SYSTEM, CONTROL (25) - FRONT AXLE SYSTEM
25.100.040
7
7
3
1
5
6
6
4
4
2
5
25.100.030
25.100.060
25.100.020
25.122.010
25.122.010
25.122.010
25.122.100
25.122.100
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47913745

HYDRAULIC CYLINDER

LH Saddle Suspension, ASSY

1шт.

2

47781389

HYDRAULIC CYLINDER

RH Saddle Suspension, ASSY

1шт.

3

87625545

HYDRAULIC VALVE

1шт.

4

87696365

PIN,45mm OD x 118mm L

2шт.

5

15540331

BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

6

933781R1

LUBE NIPPLE,M10 x 1

2шт.

7

47571495

ACCUMULATOR,330 Bar, 1.4L

330 Bar, 1.4L

2шт.
