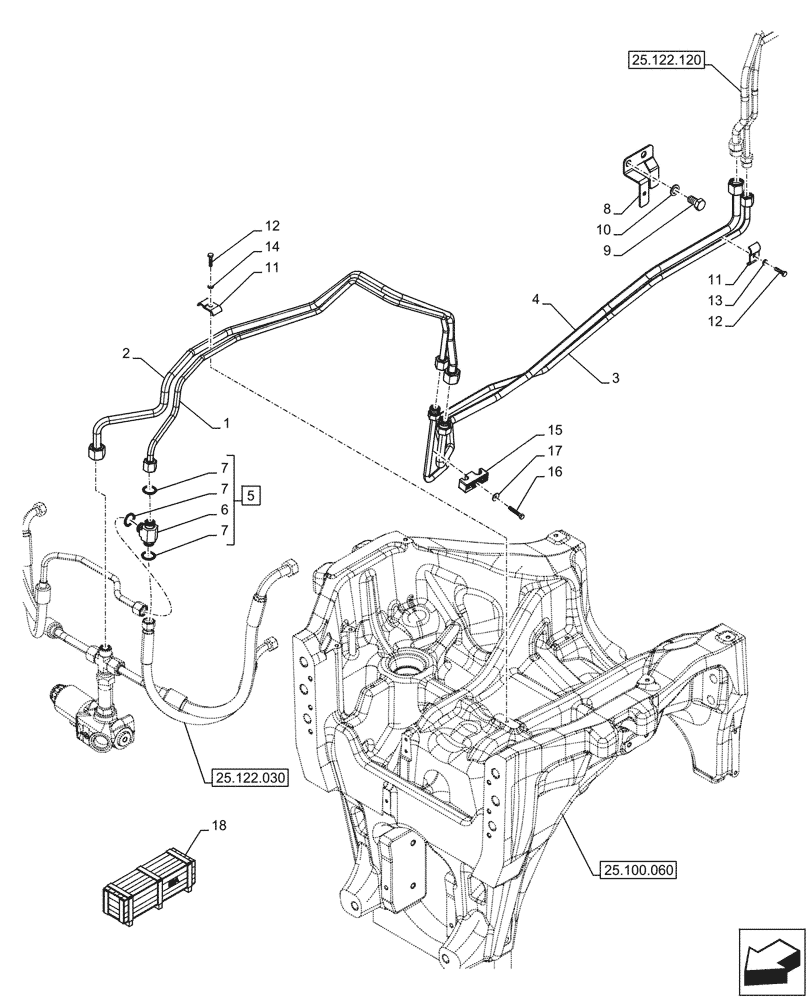

Запчасти Case IH OPTUM 300 CVT (25.122.040) - VAR - 758768, 758769, 758774, 758775, 758776, 759086, 759123, 759304 - FRONT AXLE, SUSPENSION, LINES, W/O FRONT PTO (25) - FRONT AXLE SYSTEM

1

47828683

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

2

47823787

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

3

47761199

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

4

47761197

PIPE

from Front Axle Valve to Front Axle Suspension

1шт.

5

86533127

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 13/16" - 16 ORFS

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 5

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

8

47928008

BRACKET

1шт.

9

11115424

SCREW,Hex, M14 x 2 x 28mm L, Cl 8.8

2шт.

10

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

11

84476872

BRACKET

2шт.

12

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

13

10519477

WASHER,6.45mm ID x 12mm OD x 1.5mm Thk

1шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

87694267

BLOCK

1шт.

16

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

1шт.

17

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

1шт.

Valid for T7.290, T7.315 Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Valid for OPTUM 270 CVX, OPTUM 300 CVX, OPTUM 270 CVT, OPTUM 300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Valid for 6270 CVT, 6300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
