(25.108.090) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, W/ ANTILOCK BRAKING SYSTEM (ABS), SHAFT

Запчасти Case IH OPTUM 300 CVT (25.108.090) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, W/ ANTILOCK BRAKING SYSTEM (ABS), SHAFT (25) - FRONT AXLE SYSTEM

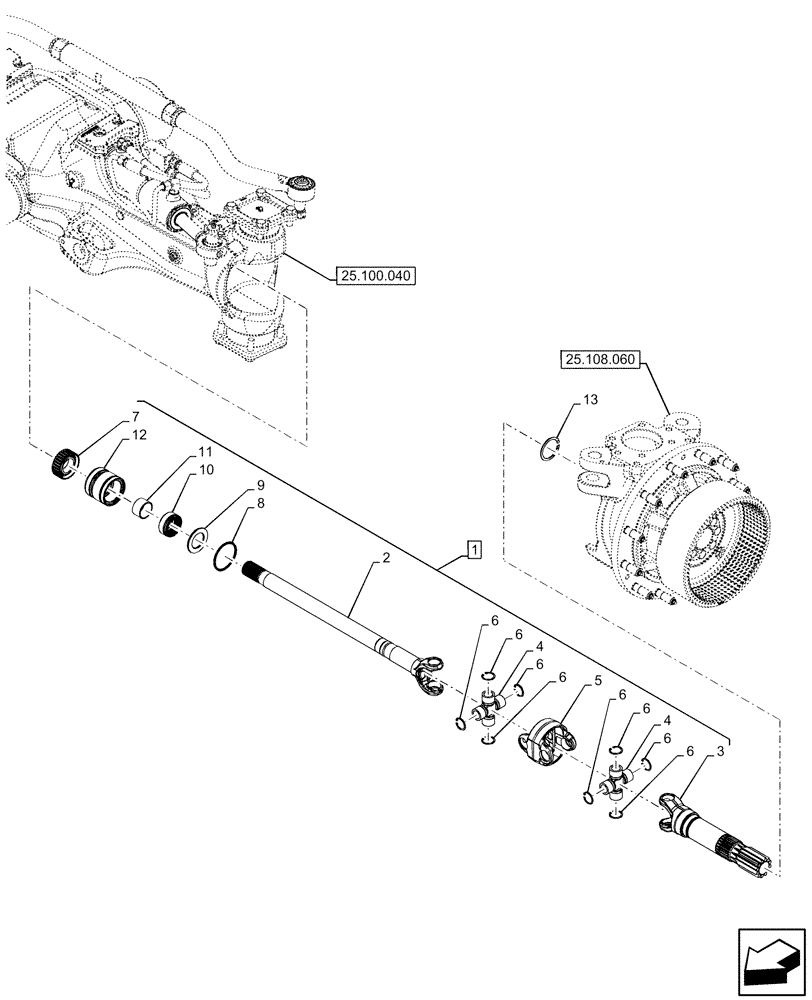

Схема запчастей Case IH OPTUM 300 CVT - (25.108.090) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, W/ ANTILOCK BRAKING SYSTEM (ABS), SHAFT (25) - FRONT AXLE SYSTEM
25.100.040
8
9
6
1
13
4
2
3
7
6
6
6
4
11
6
6
5
6
10
6
12
25.108.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47551748

HALF SHAFT

ASSY, LH, Incl 2 - 12

1шт.

1

47551749

HALF SHAFT

ASSY, RH, Incl 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Yoke Shaft, 735mm, LH, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Yoke Shaft, Incl in 1

1шт.

4

47558291

SPIDER

2шт.

5

87568624

U-JOINT SPIDER

1шт.

6

5191452

LOCKING RING

8шт.

7

47516125

WHEEL,80mm OD, 12 Holes

Wheel, Incl in 1

1шт.

8

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Retainer Seal, Incl in 1

1шт.

10

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

1шт.

11

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

12

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

13

11070176

SNAP RING,M63, Ext

2шт.
