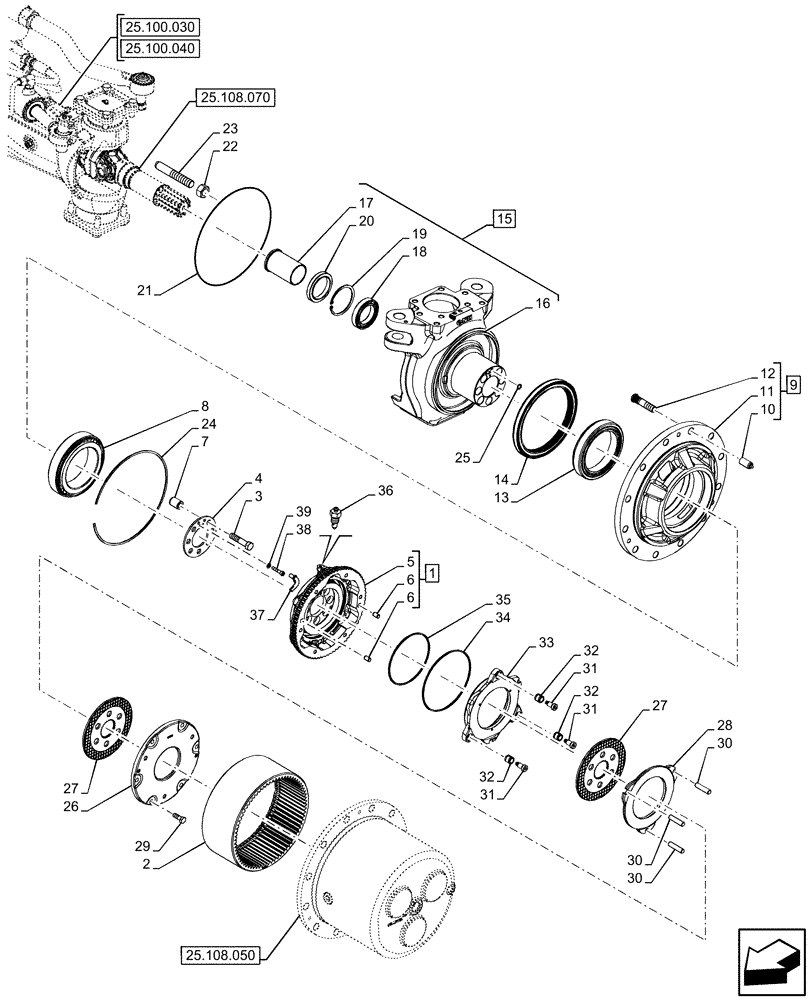

Запчасти Case IH OPTUM 300 CVT (25.108.060) - VAR - 758796 - FRONT AXLE, W/ FRONT BRAKES, STEERING KNUCKLE (25) - FRONT AXLE SYSTEM

1

47848289

CARRIER

ASSY, Incl 5, 6

1шт.

2

47494720

RING GEAR,297mm ID x 337mm OD x 136mm Thk, 72T

1шт.

3

47823518

SCREW,M16 x 1.5 x 75mm

M16 x 1.5 x 75mm

7шт.

4

47848251

PLATE

1шт.

5

NSS

NOT SOLD SEPARAT

Carrier, Incl in 1

1шт.

6

4985063

DOWEL,12mm OD x 20mm L

2шт.

7

47848271

BUSHING,16.5mm ID x 27mm OD x 35.3mm L

7шт.

8

47489637

BEARING ASSY,140mm ID x 210mm OD x 45mm

140mm ID x 210mm OD x 45mm

1шт.

9

47489621

HUB

ASSY, Incl 10 - 12

1шт.

10

84262643

PROTECTIVE SLEEVE,4.8mm ID x 19mm OD x 50.8mm L

12шт.

11

NSS

NOT SOLD SEPARAT

Hub, Incl in 9

1шт.

12

87553892

STUD,M20 x 1.5

M20 x 1.5

12шт.

13

47595708

BEARING ASSY,140mm ID x 195mm OD x 34.92mm

140mm ID x 195mm OD x 34.92mm

1шт.

14

87711037

SHAFT SEAL,220mm ID x 265mm OD x 19mm Thk

220mm ID x 265mm OD x 19mm

1шт.

15

47494713

KNUCKLE

ASSY, LH, Incl 16 - 20

1шт.

15

47494707

KNUCKLE

ASSY, RH, Incl 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Steering Knuckle, Incl in 15

1шт.

17

47507407

SPACER,63.2mm ID x 69.6mm OD x 112mm L

1шт.

18

47869149

BALL BEARING,65mm ID x 100mm OD x 18mm W

1шт.

19

11062976

SNAP RING,Int, M100 x 3

1шт.

20

47869523

SEAL,75mm ID x 100mm OD x 13mm Thk

75mm ID x 100mm OD x 13mm

1шт.

21

14469780

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

1шт.

22

9848973

NUT,M24 x 3.0, Cl 10

1шт.

23

84530771

ADJUSTMENT SCREW,M24 x 3 x 154mm L

1шт.

24

47489645

SNAP RING,M324, Ext

1шт.

25

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

26

47494728

BRAKE DISC,15mm Thk

1шт.

27

47494724

BRAKE DISC,58.4mm ID x 212mm OD x 6.5mm Thk

2шт.

28

47494725

BRAKE DISC,143mm ID x 216mm OD x 12mm Thk

1шт.

29

15540534

SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

6шт.

30

47494727

DOWEL,14mm OD x 58.5mm L

14mm x 58.5mm

3шт.

31

87699823

SCREW,M10 x 1.25 x 31.50mm, Cl 10.9

3шт.

32

87608437

BUSHING,15.3mm ID x 21.9mm OD x 19.72mm L

3шт.

33

47494721

PISTON

1шт.

34

47494722

SEAL,195.6mm ID x 201.8mm OD x 3.4mm Thk

1шт.

35

47494723

SEAL,171.1mm ID x 178.5mm OD x 3.4mm Thk

1шт.

36

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

37

47855279

PIPE

LH

1шт.

37

47855280

PIPE

RH

1шт.

38

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

1шт.

39

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.
