(23.314.020) - VAR - 391138, 758022, 758870, 759053 - 4WD FRONT AXLE, DRIVE SHAFT, SUPPORT

Запчасти Case IH OPTUM 300 CVT (23.314.020) - VAR - 391138, 758022, 758870, 759053 - 4WD FRONT AXLE, DRIVE SHAFT, SUPPORT (23) - FOUR WHEEL DRIVE SYSTEM

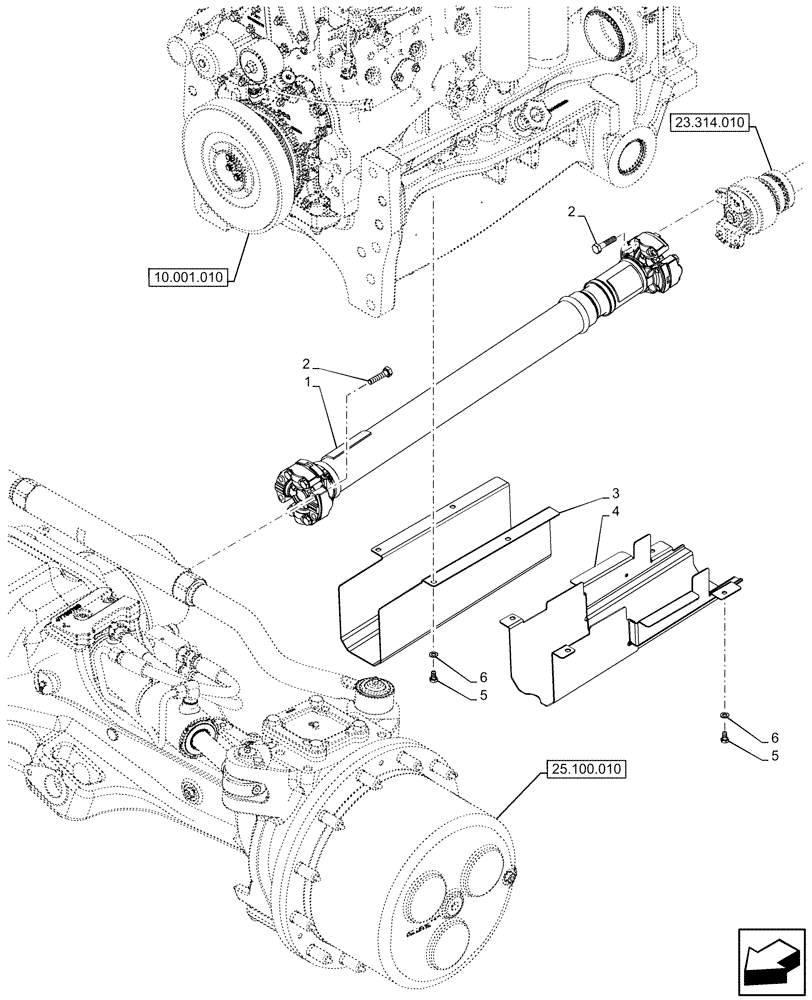

Схема запчастей Case IH OPTUM 300 CVT - (23.314.020) - VAR - 391138, 758022, 758870, 759053 - 4WD FRONT AXLE, DRIVE SHAFT, SUPPORT (23) - FOUR WHEEL DRIVE SYSTEM
23.314.010
6
1
2
5
6
4
2
5
3
10.001.010
25.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47801910

SHAFT,70mm OD x 318mm L

1шт.

2

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

8шт.

3

47772011

SHIELD

1шт.

4

47772010

SHIELD

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

8шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

8шт.
