Запчасти Case IH OPTUM 300 CVT (23.202.010) - VAR - 391138, 758022, 758870, 759053 - 4WD ENGAGEMENT CLUTCH CONTROL (23) - FOUR WHEEL DRIVE SYSTEM

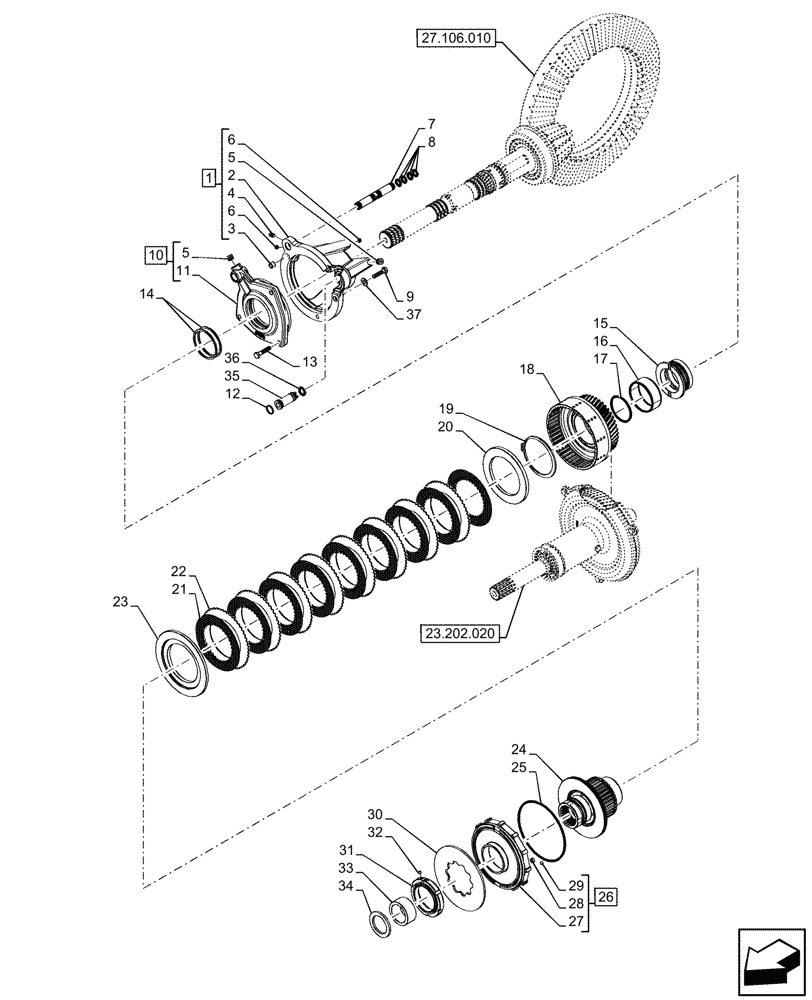

Схема запчастей Case IH OPTUM 300 CVT - (23.202.010) - VAR - 391138, 758022, 758870, 759053 - 4WD ENGAGEMENT CLUTCH CONTROL (23) - FOUR WHEEL DRIVE SYSTEM
27.106.010
5
33
32
37
16
5
21
26
22
27
24
35
10
1
4
12
18
31
29
15
9
13
2
17
20
25
8
28
14
23
36
11
6
3
6
34
30
7
19
23.202.020

Артикул

Название

Примечание

Количество

1

47694643

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 4, 5 (Qty 1), 6

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold, Incl in 1

1шт.

3

47702357

BUSHING,8.2mm ID x 12mm OD x 10mm L

2шт.

4

14326101

PLUG,M8 x 11

1шт.

5

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

6

5189186

RESTRICTOR VALVE,M8 x 1.25 x 5.3mm, Cl 8.8

2шт.

7

47705801

TUBE

1шт.

8

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

9

16043930

BOLT,M8 x 35mm, Cl 10.9, Full Thd

3шт.

10

47694652

SUPPORT

ASSY, Incl 5 (Qty 1), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 10

1шт.

12

87485814

OIL SEAL,18.6mm ID x 22mm OD x 1.7mm Thk

1шт.

13

16044030

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

3шт.

14

5191927

SEALING RING,67mm ID x 75mm OD x 2.60mm

2шт.

15

47681183

HYDRAULIC MANIFOLD

1шт.

16

87562181

NEEDLE BEARING,70mm ID x 76mm OD x 30mm W

1шт.

17

14460081

SEALING RING,-142, Cl 7, 2.362" ID x .103" Thk

1шт.

18

47689201

GEAR,40T

Driver

1шт.

19

5139462

SNAP RING,3mm Thk

1шт.

20

47695266

CLUTCH, PRESSURE PLA

1шт.

21

5163844

CLUTCH DRIVING PLATE,99mm ID x 140mm OD x 1.7mm Thk

9шт.

22

5143721

CLUTCH DRIVING PLATE,50T, 152.6mm OD

8шт.

23

47695261

PLATE

1шт.

24

47681188

HUB

1шт.

25

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

26

47744012

PISTON

ASSY, Incl 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

Piston, Incl in 26

1шт.

28

NSS

NOT SOLD SEPARAT

Bushing, Incl in 26

1шт.

29

20419320

BALL,6.35mm OD

1шт.

30

47127780

BELLEVILLE SPRING,75mm ID x 161.4mm OD x 4.4mm Thk

1шт.

31

47681196

NUT,M65 x 1.5, Cl Z4

1шт.

32

86516064

SET SCREW,M6 x 6mm, Cl 12.9

4шт.

33

47681199

SPACER,45.2mm ID x 60mm OD x 27.15mm L

1шт.

34

5148557

SHIM,45.5mm ID x 64mm OD x 4.4mm Thk

1шт.

34

5148558

SHIM,45.5mm ID x 64mm OD x 4.5mm Thk

1шт.

34

5148559

SHIM,45.5mm ID x 64mm OD x 4.6mm Thk

1шт.

34

5148560

SHIM,45.50mm ID x 64.00mm OD x 4.70mm T

1шт.

34

5148561

SHIM,45.5mm ID x 64mm OD x 4.8mm Thk

1шт.

34

5148562

SHIM,45.50mm ID x 64.00mm OD x 4.85mm T

1шт.

34

5148563

SHIM,45.50mm ID x 64.00mm OD x 4.90mm T

1шт.

34

5148564

SHIM,45.50mm ID x 64.00mm OD x 4.95mm T

1шт.

34

5148565

SHIM,45.50mm ID x 64.00mm OD x 5.00mm T

1шт.

34

5148566

SHIM,45.50mm ID x 64.00mm OD x 5.05mm T

1шт.

34

5148567

SHIM,45.5mm ID x 64mm OD x 5.1mm Thk

1шт.

34

5148568

SHIM,45.50mm ID x 64.00mm OD x 5.15mm T

1шт.

34

5148569

SHIM,45.50mm ID x 64.00mm OD x 5.20mm T

1шт.

34

5148570

SHIM,45.5mm ID x 64mm OD x 5.25mm Thk

1шт.

34

5148571

SHIM,45.5mm ID x 64mm OD x 5.3mm Thk

1шт.

34

5148572

SHIM,45.5mm ID x 64mm OD x 5.35mm Thk

1шт.

34

5148573

SHIM,45.5mm ID x 64mm OD x 5.4mm Thk

1шт.

34

5148574

SHIM,45.5mm ID x 64mm OD x 5.45mm Thk

1шт.

34

5148576

SHIM,45.5mm ID x 64mm OD x 5.5mm Thk

1шт.

34

5148575

SHIM,45.5mm ID x 64mm OD x 5.5mm Thk

1шт.

34

5148577

SHIM,45.5mm ID x 64mm OD x 5.6mm Thk

1шт.

34

5148578

SHIM,45.5mm ID x 64mm OD x 5.65mm Thk

1шт.

34

5148579

SHIM,45.5mm ID x 64mm OD x 5.7mm Thk

1шт.

34

5148580

SHIM,45.5mm ID x 64mm OD x 5.75mm Thk

1шт.

34

5148581

SHIM,45.5mm ID x 64mm OD x 5.8mm Thk

1шт.

34

5148582

SHIM,45.5mm ID x 64mm OD x 5.85mm Thk

1шт.

34

5148583

SHIM,45.5mm ID x 64mm OD x 5.9mm Thk

1шт.

34

5148584

SHIM,45.5mm ID x 64mm OD x 5.95mm Thk

1шт.

34

5148585

SHIM,45.5mm ID x 64mm OD x 6mm Thk

1шт.

34

5148586

SHIM,45.5mm ID x 64mm OD x 6.05mm Thk

1шт.

34

5148587

SHIM,45.5mm ID x 64mm OD x 6.1mm Thk

1шт.

34

5148588

SHIM,45.5mm ID x 64mm OD x 6.15mm Thk

1шт.

34

5148589

SHIM,45.5mm ID x 64mm OD x 6.15mm Thk

1шт.

34

5148590

SHIM,45.5mm ID x 64mm OD x 6.3mm Thk

1шт.

34

5148591

SHIM,45.5mm ID x 64mm OD x 6.4mm Thk

1шт.

34

5148592

SHIM,45.5mm ID x 64mm OD x 6.5mm Thk

1шт.

34

5148593

SHIM,45.5mm ID x 64mm OD x 6.6mm Thk

1шт.

35

47694977

BUSHING,10.5mm ID x 21.6mm OD x 62.5mm L

1шт.

36

45483319

O-RING

1шт.

37

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

Выбрано товаров: 73
