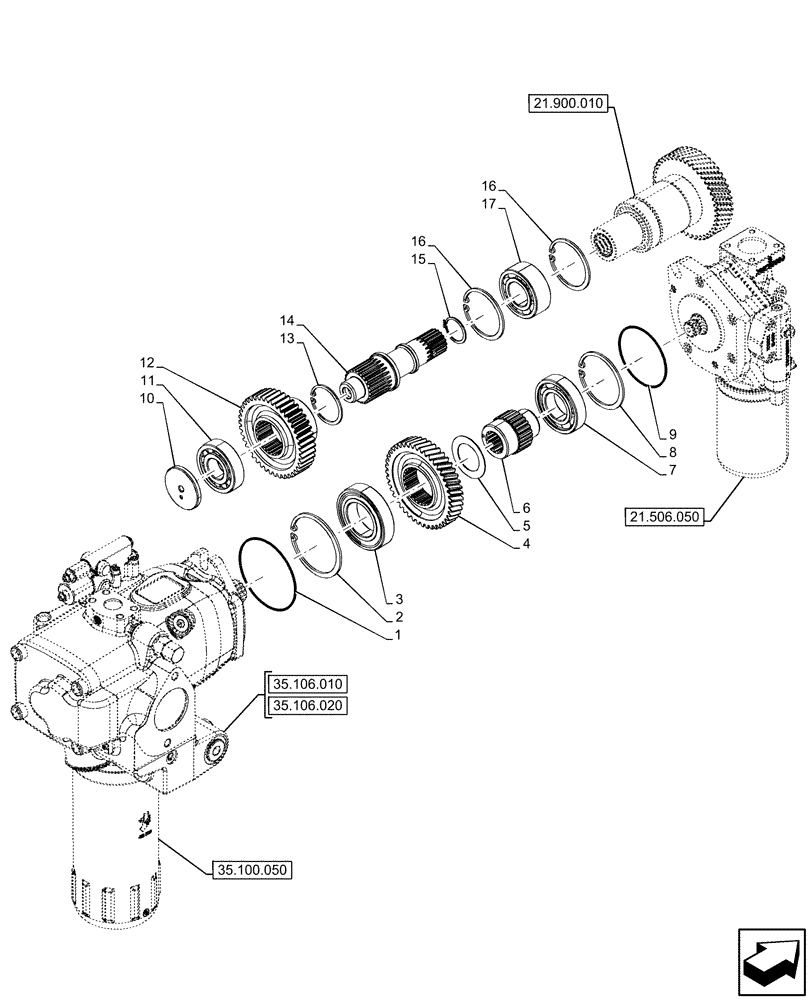

Запчасти Case IH OPTUM 300 CVT (21.900.020) - VAR - 391227, 758797 - HYDRAULIC PUMP, DRIVEN GEAR (21) - TRANSMISSION

1

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

2

16875173

CIRCLIP

1шт.

3

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

4

47511718

GEAR,44T

Z 44

1шт.

5

47551530

WASHER,40.5mm ID x 62mm OD x 1mm Thk

1шт.

6

47511591

SHAFT,24/33mm ID x 40/50mm OD x 66mm L, 13/14/26T

1шт.

7

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

8

16874776

LOCKING RING

1шт.

9

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

10

87591176

SPACER,M10 x 1.25 x 9.25mm L

1шт.

11

87591964

ROLLER BEARING,30mm ID x 72mm OD x 19mm W

1шт.

12

87535659

DRIVEN GEAR,42T

Z 42

1шт.

13

11060676

CIRCLIP,M55, Int

1шт.

14

87535661

DRIVE SHAFT,172mm L, 18/24T

1шт.

15

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

16

370018

SNAP RING,M72, Internal

2шт.

17

87591976

BALL BEARING,35mm ID x 72mm OD x 27mm W

1шт.
