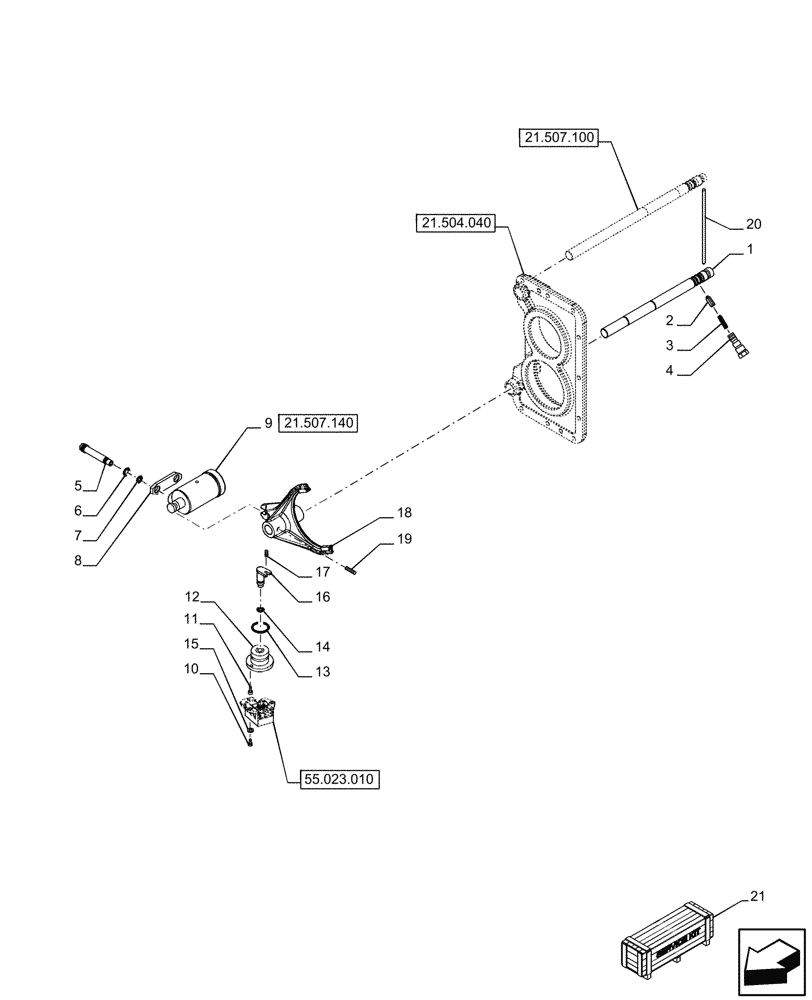

Запчасти Case IH OPTUM 300 CVT (21.507.110) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, GEARSHIFT, ROD & FORKS (21) - TRANSMISSION

1

84587864

ROD,24mm OD x 374mm L

Lower, II Range - R1

1шт.

2

5166394

PAWL,10mm OD x 25mm L

1шт.

3

5166393

SPRING,8mm OD x 43mm L

1шт.

4

87549975

PLUG,M18 x 1.5 x 62mm L

Hex

1шт.

5

87653486

HOLDER

Lower

2шт.

6

5115996

O-RING,2.62mm Thk x 15.08mm ID, 80 Duro

2шт.

7

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

8

87628829

SPACER,2x17mm OD x 8mm Thk x 95mm L

1шт.

9

87549885

OPERATING CYLINDER

II Range - R1, ASSY

1шт.

10

13272014

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8

2шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

2шт.

12

87675305

HOLDER

1шт.

13

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

14

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

15

14497701

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

2шт.

16

87675304

SHAFT,9.4mm ID x 12mm OD x 47.5mm L

1шт.

17

10336010

PIN,6mm OD x 16mm L

1шт.

18

84587862

SHIFTER FORK,144.4mm ID x 162mm OD

II Range - R1

1шт.

19

13913670

ROLL PIN,M8 x 40, Coiled

1шт.

20

87549873

PAWL,8.5mm OD x 273mm L

1шт.

21

47912889

GEARBOX

Transmission ASSY, Incl 1 - 20

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
