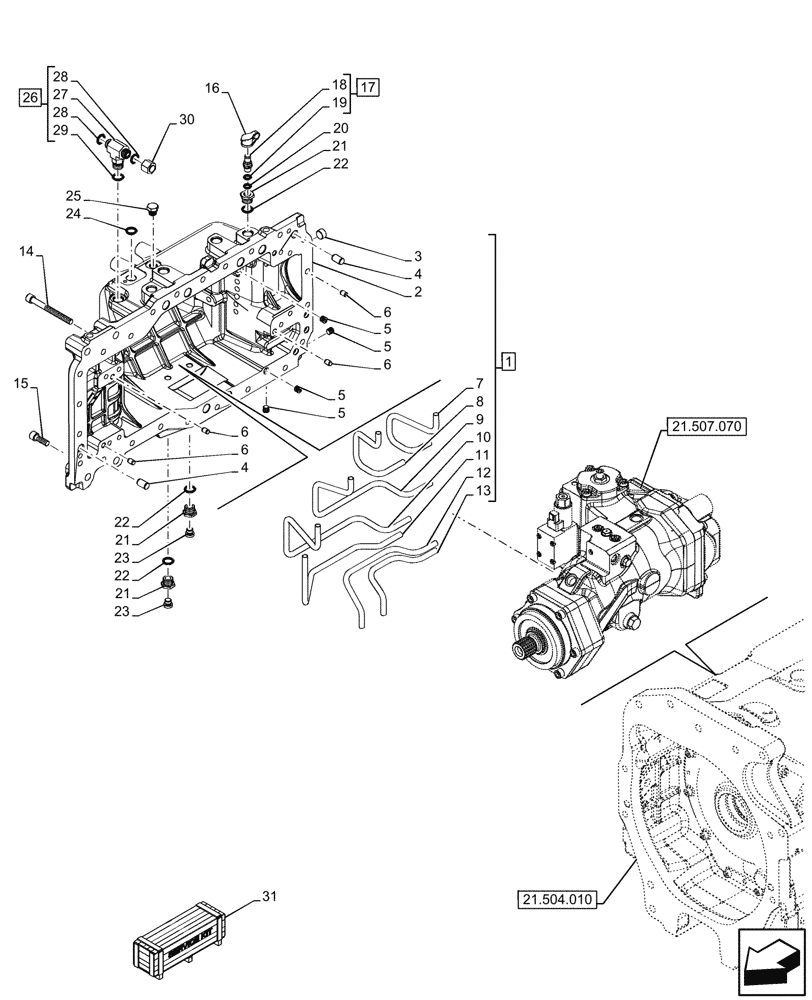

Запчасти Case IH OPTUM 300 CVT (21.507.090) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, HYDROSTATIC PUMP, COVER (21) - TRANSMISSION

1

47516323

COVER ASSY

ASSY, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Hydrostatic Unit Cover, Incl in 1

1шт.

3

10268404

PLUG,M20 x 1.25 x 11, DAC

M20 x 1.25

1шт.

4

4985062

DOWEL,15mm OD x 25mm L

2шт.

5

10275504

HEX PLUG

Hex, M12 x 1.25

4шт.

6

5153109

DOWEL,10mm OD x 15mm L

4шт.

7

NSS

NOT SOLD SEPARAT

Delivery Pipe for R2/IV Cylinder, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Delivery Pipe for R2/IV Cylinder, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Delivery Pipe for I/III Cylinder, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Delivery Pipe for I/III Cylinder, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

CVT HD Supply Pipe, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

CVT HD Diagnostic Pipe, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

CVT HD Diagnostic Pipe, Incl in 1

1шт.

14

14332724

HEX SOC SCREW,M12 x 1.25 x 120mm, Cl 8.8

1шт.

15

14331224

BOLT,M12 x 1.25 x 35mm, Cl 8.8, Full Thd

22шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

17

5185423

COUPLING

ASSY, Incl 18 (Qty 1), 19 (Qty 1)

4шт.

18

NSS

NOT SOLD SEPARAT

Coupling, Incl in 17

4шт.

19

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

20

14437785

O-RING,11.3mm ID x 2.4mm

4шт.

21

87661594

REDUCER FITTING

6шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

6шт.

23

10118711

PLUG,M14 x 1.5 x 12, Cl5.8

2шт.

24

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

25

86981620

PLUG,M16 x 1.5, ORB

1шт.

26

87317726

TEE,13/16"-16 ORFS x M22 x 1.5 ORB Br

ASSY, Incl 27 - 29

1шт.

27

NSS

NOT SOLD SEPARAT

Tee, Incl in 26

1шт.

28

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

29

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

30

9840575

CAP,13/16" - 16 ORFS

1шт.

31

47912889

GEARBOX

Transmission ASSY, Incl 1 - 30

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
