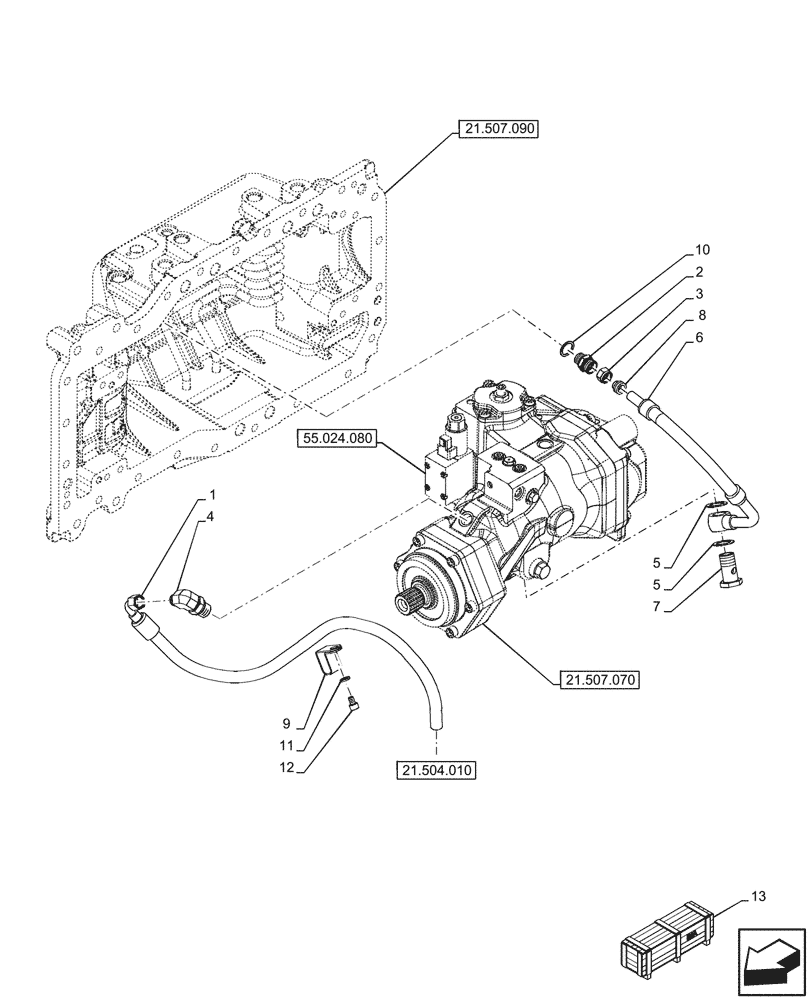

Запчасти Case IH OPTUM 300 CVT (21.507.080) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, HYDROSTATIC PUMP, LINE (21) - TRANSMISSION

1

84332171

FLEXIBLE HOSE,19.05mm ID x 708mm L

Hydrostatic Unit Return, 708mm

1шт.

2

11212813

FITTING,M18 x 1.5 x M22 x 1.5

1шт.

3

11260713

LOCK NUT,M22 x 1.5

M22 x 1.5, Class 8

1шт.

4

87519182

HYD CONNECTOR

1шт.

5

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

6

84535811

HYDRAULIC HOSE,2.7mm ID x 405mm L

Hydr GR Booster Feeding, 12.7mm ID x 405mm

1шт.

7

87667266

BALL STUD,M22 x 1.5 x 42mm

1шт.

8

11266813

FERRULE,15mm ID x 18mm OD x 10mm L

15mm

1шт.

9

84236686

BRACKET

1шт.

10

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

11

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

1шт.

12

75312314

SCREW,M8 x 12mm, Class 8.8

M8 x 12mm, Class 8.8

1шт.

13

47912889

GEARBOX

Transmission ASSY, Incl 1 - 12

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
