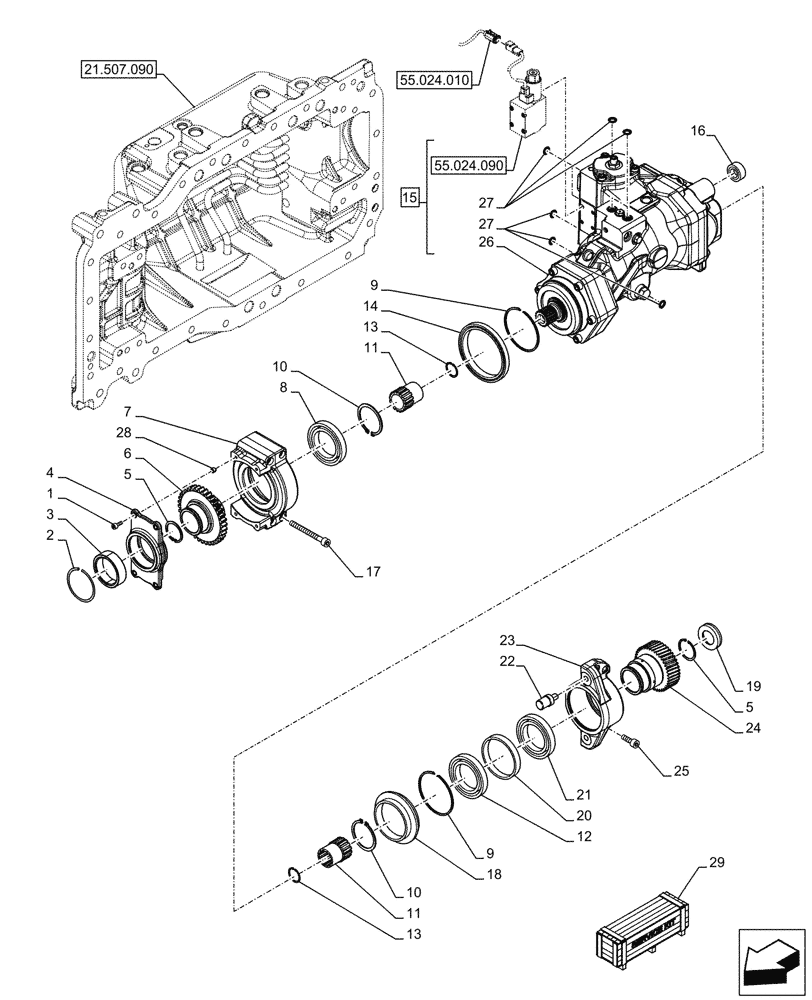

Запчасти Case IH OPTUM 300 CVT (21.507.070) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, HYDROSTATIC PUMP (21) - TRANSMISSION

1

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

2

87574918

SNAP RING,M86.8, Ext

1шт.

3

87562573

NEEDLE BEARING,Needle, 68mm ID x 85mm OD x 25mm W

1шт.

4

47947548

COVER

Front

1шт.

5

11060575

LOCKING RING

2шт.

6

87566872

PINION,36T

Z 36

1шт.

7

47947551

SUPPORT

Front

1шт.

8

47136958

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

9

87567448

SNAP RING,M113.3, Ext

2шт.

10

11070376

SNAP RING,M70, Ext

2шт.

11

84248897

SPLINED COUPLING,36/51.7mm ID x 40/54.7mm OD x 62mm L

2шт.

12

84455696

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

13

13421674

SNAP RING,M38, Int

38mm, Int

2шт.

14

87550536

RUBBER SEAL,127mm ID x 152mm OD x 14mm Thk

1шт.

15

84536173

HYDROSTATIC PUMP

ASSY, Incl 26, 27

1шт.

See also Hydrostatic Pump Components in Figure 55.024.090

1шт.

15

84536173R

REMAN-HYDROSTAT PUMP

1шт.

15

84536173C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

84120288

BUSHING,25mm ID x 42mm OD x 23mm L

2шт.

17

14332624

SCREW,Hex, M12 x 1.25 x 110mm L, Cl 8.8

4шт.

18

84245241

RING,88mm ID x 125mm OD x 11.5mm Thk

1шт.

19

84248817

RETAINER CUP,30mm ID x 58.5mm OD x 13mm Thk

1шт.

20

87572495

SPACER,100mm ID x 110mm OD x 15mm L

1шт.

21

87587823

ROLLER BEARING,80mm ID x 110mm OD x 20mm W

1шт.

22

84248990

PIN,29.5mm OD x 54mm L

2шт.

23

84248818

SUPPORT

Rear

1шт.

24

84248819

PINION,40T

Driven, Z 40

1шт.

25

14331224

BOLT,M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

26

NSS

NOT SOLD SEPARAT

Hydrostatic Pump, Incl in 15

1шт.

27

47871752

SEAL KIT

1шт.

28

47947554

BUSHING,8.5mm ID x 12.5mm OD x 10mm L

2шт.

29

47912889

GEARBOX

Transmission ASSY, Incl 1 - 28

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
