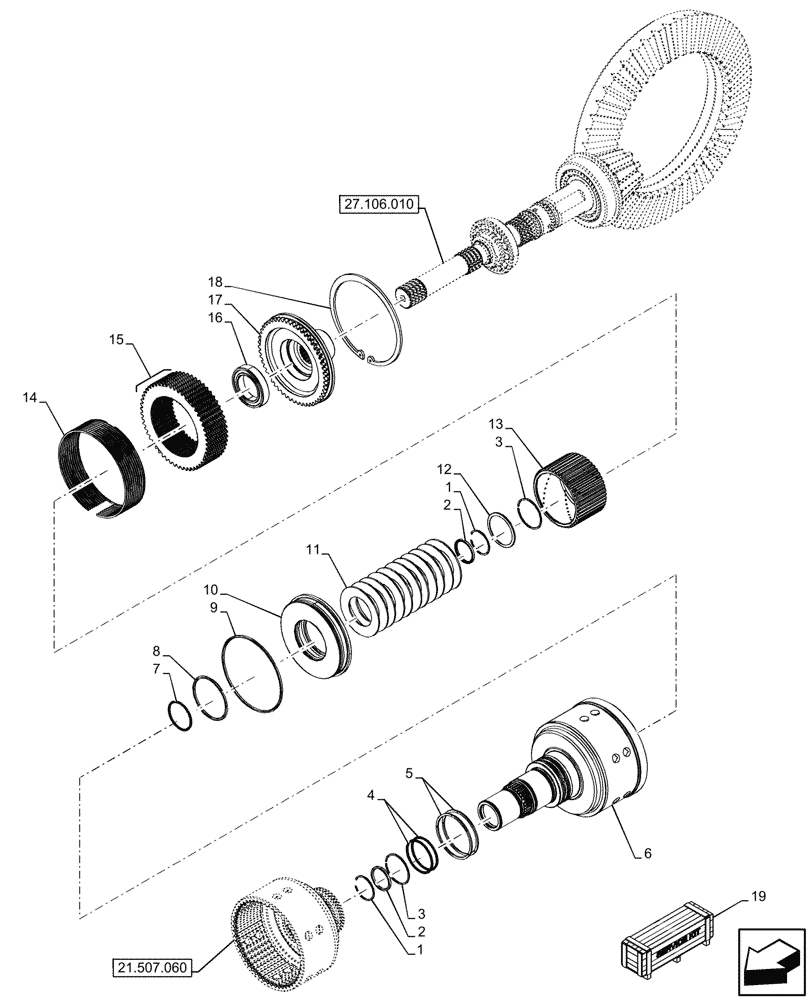

Запчасти Case IH OPTUM 300 CVT (21.507.060) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, CLUTCH (21) - TRANSMISSION

1

5117076

CIRCLIP,M47, Ext

M47, Ext

2шт.

2

87562129

OIL SEAL,40mm ID x 47mm OD x 4mm

Oil, 40mm ID x 47mm OD x 4mm

2шт.

3

47136464

SNAP RING,M58, Ext

M58, Ext

2шт.

4

14464780

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

2шт.

5

87743137

SEALING RING,90mm OD x 2.35mm Thk

2шт.

6

47664433

CLUTCH HOUSING

1шт.

7

14455180

O-RING,2.114" ID x 0.07" Width

1шт.

8

5160154

GASKET,79.97mm ID x 87.5mm OD x 3.2mm Thk

1шт.

9

5172235

GASKET,144.55mm ID x 152.06mm OD x 3.2mm Thk

1шт.

10

87707334

PISTON

1шт.

11

47836518

BELLEVILLE WASHER,58mm ID x 98mm OD x 2.3mm Thk

11шт.

12

84472847

RETAINER CUP,58mm ID x 68mm OD x 3mm Thk

1шт.

13

87476182

HUB

1шт.

14

5166536

SPRING,173mm OD x 1.27mm Thk

11шт.

15

87701174

CLUTCH DISC,51.7mm Thk

1шт.

16

87476160

BALL BEARING,50 mm ID x 80 mm OD x 16 mm

1шт.

17

84173397

HUB

1шт.

18

11078676

SNAP RING,M175, Int

1шт.

19

47912889

GEARBOX

Transmission ASSY, Incl 1 - 18

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
