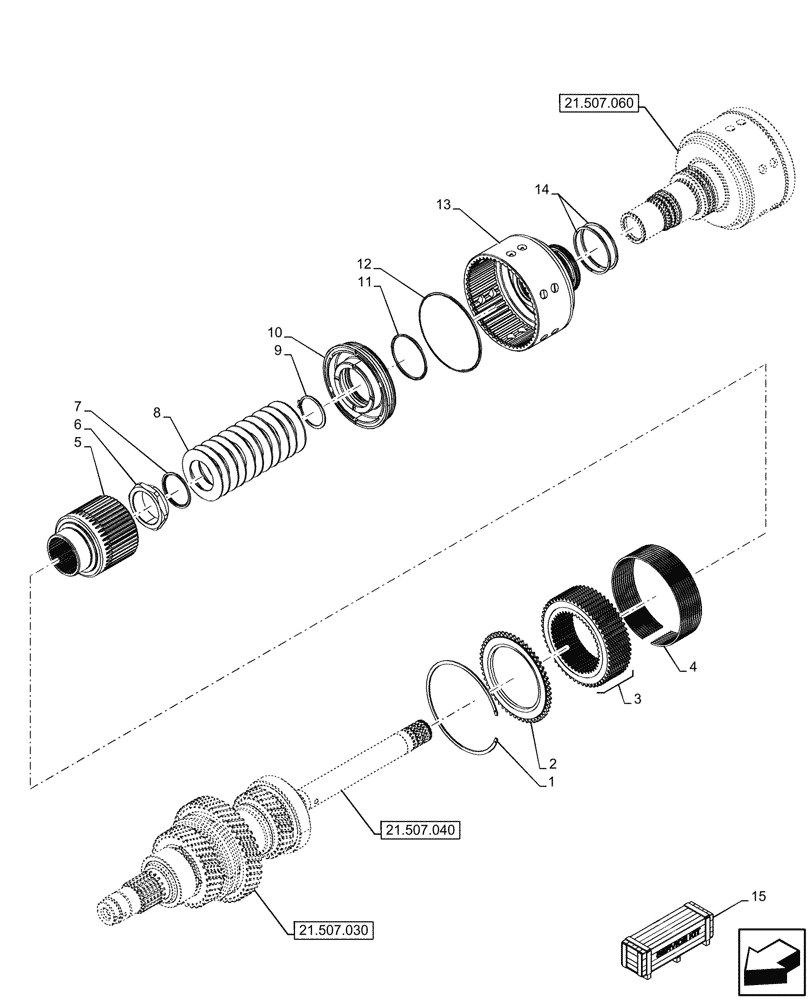

Запчасти Case IH OPTUM 300 CVT (21.507.050) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, CLUTCH (21) - TRANSMISSION

1

5122844

SNAP RING,168mm, 2mm Thk, Int

1шт.

2

5122821

THRUST PLATE,53T, 173mm OD

1шт.

3

87701174

CLUTCH DISC,51.7mm Thk

1шт.

4

5166536

SPRING,173mm OD x 1.27mm Thk

11шт.

5

87528403

CLUTCH HOUSING

1шт.

6

87545626

NUT,Hex, M65 x 2

1шт.

7

84472847

RETAINER CUP,58mm ID x 68mm OD x 3mm Thk

1шт.

8

47836518

BELLEVILLE WASHER,58mm ID x 98mm OD x 2.3mm Thk

11шт.

9

11069776

SNAP RING,M58, Ext

1шт.

10

87707334

PISTON

1шт.

11

5160154

GASKET,79.97mm ID x 87.5mm OD x 3.2mm Thk

1шт.

12

5172235

GASKET,144.55mm ID x 152.06mm OD x 3.2mm Thk

1шт.

13

47664437

CLUTCH HOUSING

1шт.

14

87743137

SEALING RING,90mm OD x 2.35mm Thk

2шт.

15

47912889

GEARBOX

Transmission ASSY, Incl 1 - 14

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
