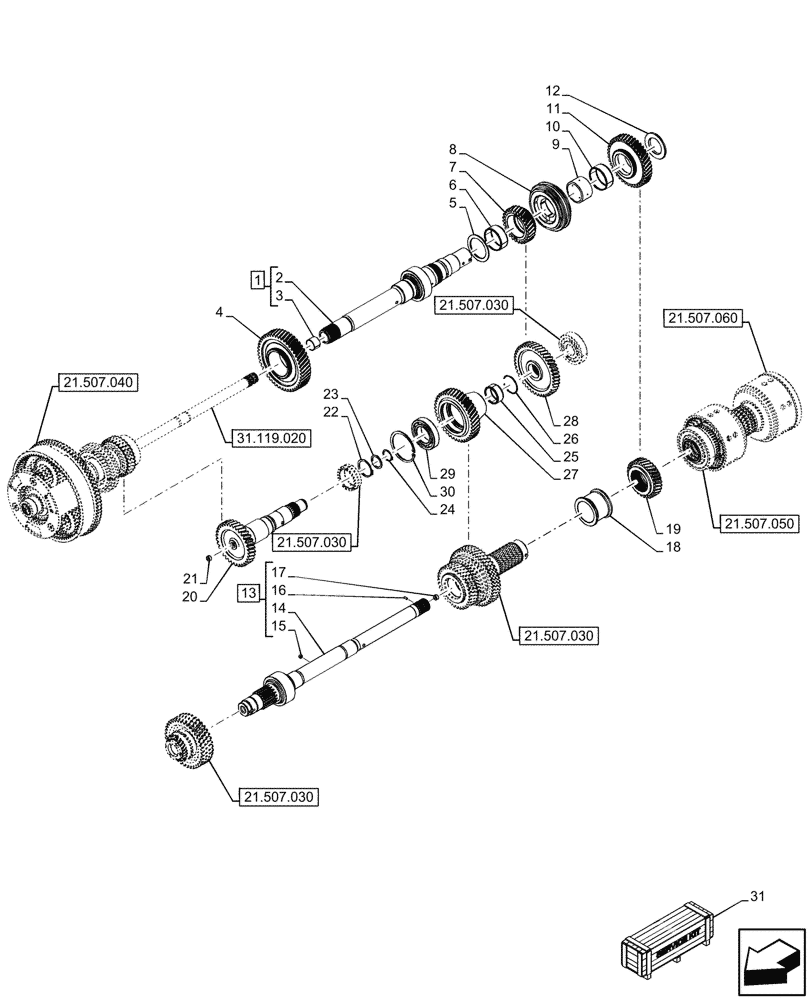

Запчасти Case IH OPTUM 300 CVT (21.507.040) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, GEARS & SHAFT (21) - TRANSMISSION

1

47897857

SHAFT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

3

5107725

BUSHING,31.99mm ID x 36mm OD x 25mm L

1шт.

4

47434651

GEAR,48/47T

1шт.

5

47915565

SPACER,68mm ID x 90mm OD x 4mm L

1шт.

6

5144915

NEEDLE BEARING CAGE,68mm ID x 74mm OD x 30mm W

1шт.

7

87707714

GEAR,27T

Z 27

1шт.

8

84212632

SYNCHRONIZER,144mm ID x 156mm OD x 46mm Thk, 31/46T

1шт.

9

87534229

BUSHING,60mm ID x 70mm OD x 43.5mm L

1шт.

10

87562181

NEEDLE BEARING,70mm ID x 76mm OD x 30mm W

1шт.

11

47434648

GEAR,46/40T

1шт.

12

87528646

SPACER,55mm ID x 88mm OD x 8mm L

1шт.

13

47445662

SHAFT

ASSY, Incl 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Shaft, Incl in 13

1шт.

15

5193270

ORIFICE,M6 x 1 x 4mm, Cl 8.8

1шт.

16

13939670

COILED PIN,5mm ODx 12mm L

5mm x 12mm

1шт.

17

87568761

RESTRICTOR,Hex Soc, M10 x 1.25

1шт.

18

87528366

SPACER,70mm ID x 95mm OD x 68mm L

1шт.

19

47443841

GEAR,34/29T

1шт.

20

87588055

SHAFT,40.6/128.7mm ID x 44.6/147.4mm OD x 304mm L, 21/33T

1шт.

21

87541312

PLUG

1шт.

22

11069576

SNAP RING,M55, Ext

1шт.

23

87548132

SPACER,35mm ID x 45mm OD x 3mm L

1шт.

24

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

25

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

26

5142178

SNAP RING,1.5mm Thk

M58, Ext

1шт.

27

87528476

GEAR,40T

Z 40

1шт.

28

87589205

GEAR,42T

Z 42

1шт.

29

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

1шт.

30

11062976

SNAP RING,Int, M100 x 3

1шт.

31

47912889

GEARBOX

Transmission ASSY, Incl 1 - 30

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
