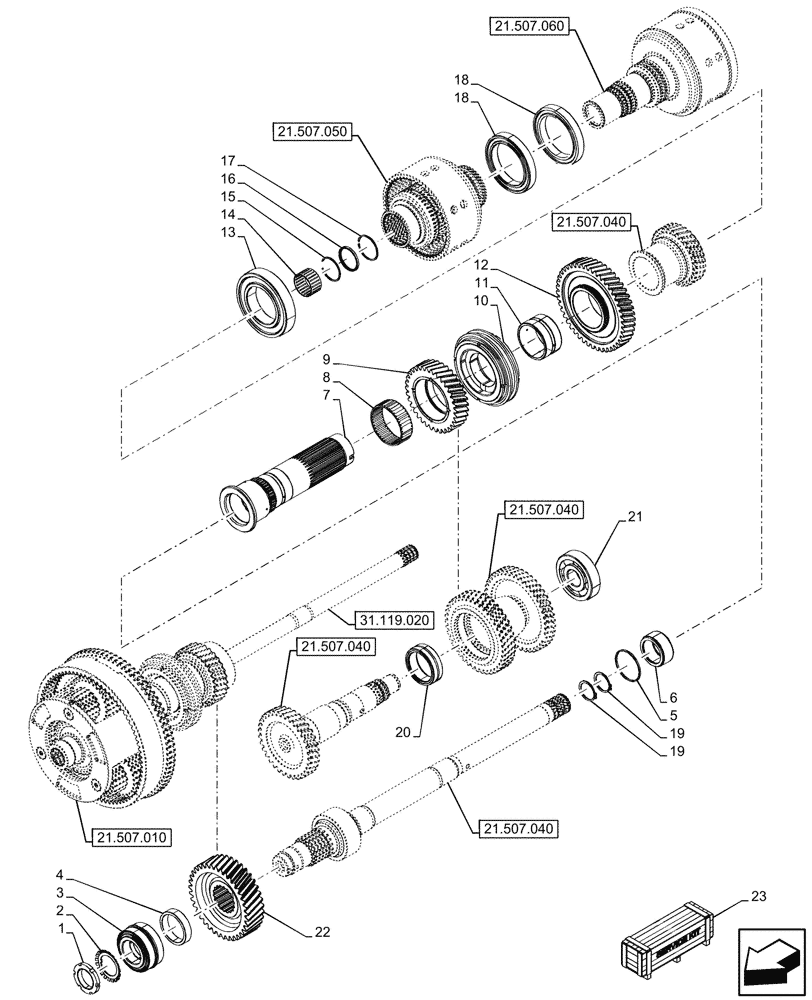

Запчасти Case IH OPTUM 300 CVT (21.507.030) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, DRIVEN SHAFT, RANGE GEAR (21) - TRANSMISSION

1

5124794

RING NUT,M45 x 1.5

M45 x 1.5

1шт.

2

87562131

LOCK WASHER,45mm ID x 69mm OD x 1.8mm Thk

1шт.

3

47136076

TAPERED BEARING,50mm ID x 90mm OD x 50mm W

1шт.

4

87539672

SPACER,60mm ID x 72mm OD x 16mm L

1шт.

5

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

1шт.

6

87562176

NEEDLE BEARING,50mm ID x 66mm OD x 30mm W

1шт.

7

87673909

SHAFT,65.6/70.6mm ID x 69.6/74.6mm OD x 293mm L, 34/36T

1шт.

8

81863562

BEARING ASSY,80mm ID x 88mm OD x 29.8mm W

1шт.

9

87528362

GEAR,34T

Z 34

1шт.

10

87534217

SYNCHRONIZER,144mm ID x 156mm OD x 46mm L, 36/48T

1шт.

11

87534187

BUSHING,70mm ID x 80mm OD x 44mm L

1шт.

12

47443842

GEAR,48/45T

1шт.

13

87562149

BALL BEARING,80mm ID x 140mm OD x 26mm W

1шт.

14

5137527

NEEDLE BEARING,45mm ID x 50mm OD x 27mm W

1шт.

15

5139492

RING,M50, Ext

M50, Ext

1шт.

16

87564297

OIL SEAL,45mm ID x 52mm OD x 4mm Thk

45 x 52 x 4

1шт.

17

87617914

SNAP RING,M52

M52

1шт.

18

87562157

BALL BEARING,90mm ID x 125mm OD x 18mm W

2шт.

19

11068876

SNAP RING,M40, Ext

2шт.

20

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

1шт.

21

87562566

BALL BEARING,35mm ID x 100mm OD x 25mm W

1шт.

22

47490539

GEAR,37T

Z 37

1шт.

23

47912889

GEARBOX

Transmission ASSY, Incl 1 - 22

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
