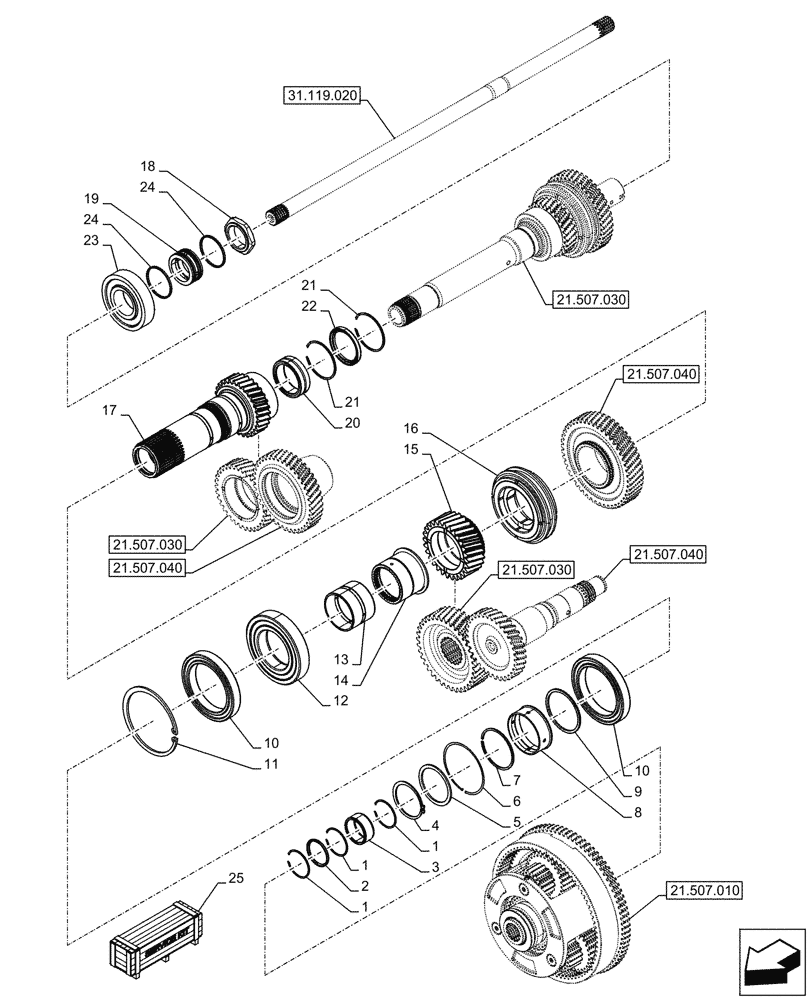

Запчасти Case IH OPTUM 300 CVT (21.507.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, MAIN SHAFT, RANGE GEAR (21) - TRANSMISSION

1

5142178

SNAP RING,1.5mm Thk

M58, Ext

3шт.

2

84153562

RUBBER SEAL,50mm ID x 58mm OD x 4mm Thk

1шт.

3

5162256

NEEDLE BEARING,Needle, 50mm ID x 58mm OD x 25mm W

1шт.

4

11070576

SNAP RING,M75, Ext

1шт.

5

84231224

SPACER,74.6mm ID x 88mm OD x 3mm L

74.6mm ID x 88mm OD x 3mm Thk

1шт.

5

84231215

SPACER,74.6mm ID x 88mm OD x 2.5mm L

74.6mm ID x 88mm OD x 2.5mm Thk

1шт.

5

84231218

SPACER,74.6mm ID x 88mm OD x 2.6mm L

74.6mm ID x 88mm OD x 2.6mm Thk

1шт.

5

84231220

SPACER,74.6mm ID x 88mm OD x 2.7mm L

74.6mm ID x 88mm OD x 2.7mm Thk

1шт.

5

84231222

SPACER,74.6mm ID x 88mm OD x 2.8mm L

74.6mm ID x 88mm OD x 2.8mm Thk

1шт.

5

84231223

SPACER,74.6mm ID x 88mm OD x 2.9mm L

74.6mm ID x 88mm OD x 2.9mm Thk

1шт.

5

84231225

SPACER,74.6mm ID x 88mm OD x 3.1mm L

74.6mm ID x 88mm OD x 3.1mm Thk

1шт.

5

84231226

SPACER,74.6mm ID x 88mm OD x 3.2mm L

74.6mm ID x 88mm OD x 3.2mm Thk

1шт.

5

84231227

SPACER,74.6mm ID x 88mm OD x 3.3mm L

74.6mm ID x 88mm OD x 3.3mm Thk

1шт.

5

84231237

SPACER,74.6mm ID x 88mm OD x 3.4mm L

74.6mm ID x 88mm OD x 3.4mm Thk

1шт.

6

87702003

SNAP RING,M105, Int

1шт.

7

87684516

SNAP RING,M85, Ext

M85, Ext

1шт.

8

84230669

SPACER,85.1mm ID x 90mm OD x 27.75mm L

1шт.

9

87684515

SPACER,85mm ID x 95mm OD x 3mm L

85mm ID x 95mm OD x 3mm Thk

1шт.

9

84196114

SPACER,85mm ID x 95mm OD x 2.9mm L

85mm ID x 95mm OD x 2.9mm Thk

1шт.

9

84233886

SPACER,85mm ID x 95mm OD x 2.95mm L

85mm ID x 95mm OD x 2.95mm Thk

1шт.

9

84233888

SPACER,85mm ID x 95mm OD x 3.05mm L

85mm ID x 95mm OD x 3.05mm Thk

1шт.

9

84195846

SPACER,85mm ID x 95mm OD x 3.1mm L

85mm ID x 95mm OD x 3.1mm Thk

1шт.

9

84233889

SPACER,85mm ID x 95mm OD x 3.15mm L

85mm ID x 95mm OD x 3.15mm Thk

1шт.

9

84195849

SPACER,85mm ID x 95mm OD x 3.2mm L

85mm ID x 95mm OD x 3.2mm Thk

1шт.

9

84233892

SPACER,85mm ID x 95mm OD x 3.25mm L

85mm ID x 95mm OD x 3.25mm Thk

1шт.

9

84195850

SPACER,85mm ID x 95mm OD x 3.3mm L

85mm ID x 95mm OD x 3.3mm Thk

1шт.

10

47136425

BALL BEARING,105mm ID x 145mm OD x 20mm W

2шт.

11

11077176

CIRCLIP,145mm

145mm

1шт.

12

87702000

ROLLER BEARING,85mm ID x 150mm OD x 28mm W

1шт.

13

87534220

BUSHING,75mm ID x 82mm OD x 59.5mm L

1шт.

14

84195306

BEARING CARRIER

1шт.

15

47434644

GEAR,28T

Z 28

1шт.

16

87534212

SYNCHRONIZER,144mm ID x 156mm OD x 46mm L, 38/48T

1шт.

17

47897525

SHAFT,107.1mm ID x 124.6mm OD x 320mm L, 29/36/38T

1шт.

18

87562134

RING NUT,Hex, M50 x 1.5

1шт.

19

87589208

SELF LUB RING,50mm ID x 66.5mm OD x 29.6mm Thk

1шт.

20

87562575

NEEDLE BEARING,Needle, 63mm ID x 80mm OD x 25mm W

1шт.

21

87567449

SNAP RING,M82.6, Ext

M80, Ext

2шт.

22

87699105

OIL SEAL,64mm ID x 80mm OD x 8mm

Oil, 64mm ID x 80mm OD x 8mm

1шт.

23

87562151

BALL BEARING,55mm ID x 120mm OD x 29mm W

1шт.

24

87588681

SEALING RING,63.81mm ID x 67.81mm OD x 2.87mm Thk

2шт.

25

47912889

GEARBOX

Transmission ASSY, Incl 1 - 24

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
