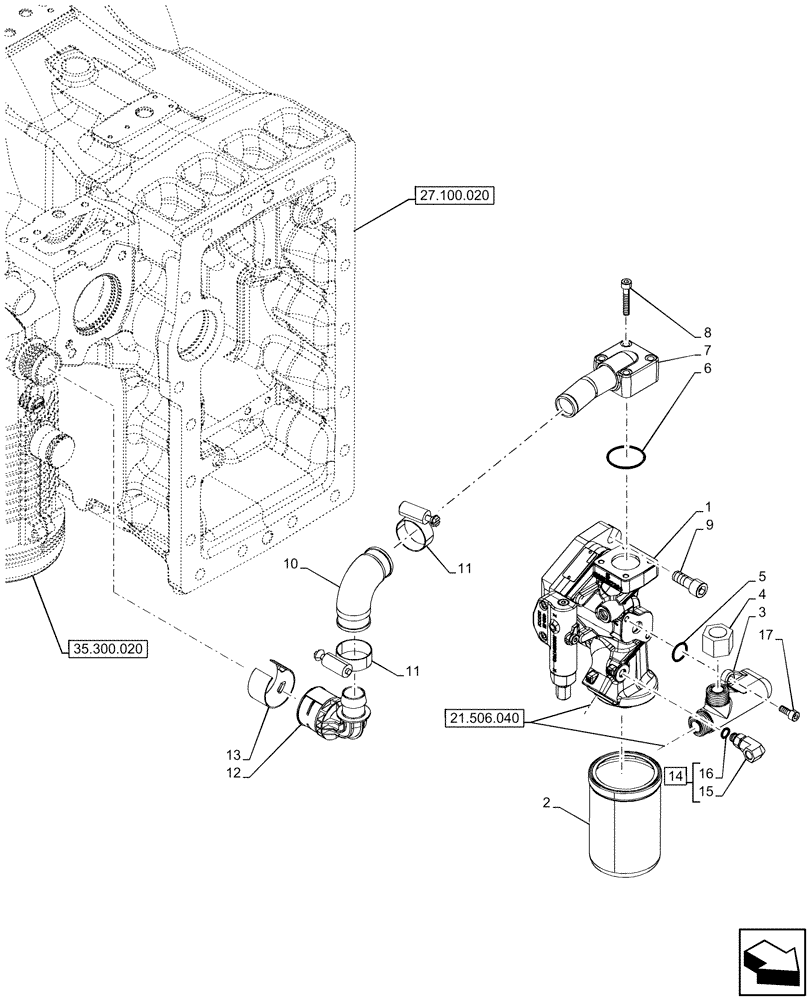

Запчасти Case IH OPTUM 300 CVT (21.506.050) - VAR - 391227, 758797 - HYDRAULIC PUMP, VANE (21) - TRANSMISSION

1

87738887

PUMP,45 CC

1шт.

2

87588814

HYDRAULIC OIL FILTER,151mm L

1шт.

3

84479353

FLANGE

1шт.

4

9847689

CAP,1-3/16" - 12 ORFS

1шт.

5

14453880

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

6

14454980

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

1шт.

7

87608113

TUBE

1шт.

8

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

4шт.

9

14311624

SCREW,Hex, M14 x 1.5 x 35mm L, Cl 8.8

2шт.

10

87608355

ELBOW,31mm OD x 45mm ID x 60/65mm

1шт.

11

82039346

HOSE CLAMP,30mm - 45mm, Worm Gear

2шт.

12

87614900

ELBOW,57mm OD x 32.9/27mm ID x 88.3mm

1шт.

13

87330755

STOP DEVICE

1шт.

14

84122478

ELBOW,M12 x 1.5 x 45mm

ASSY, Incl 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

17

14306320

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
