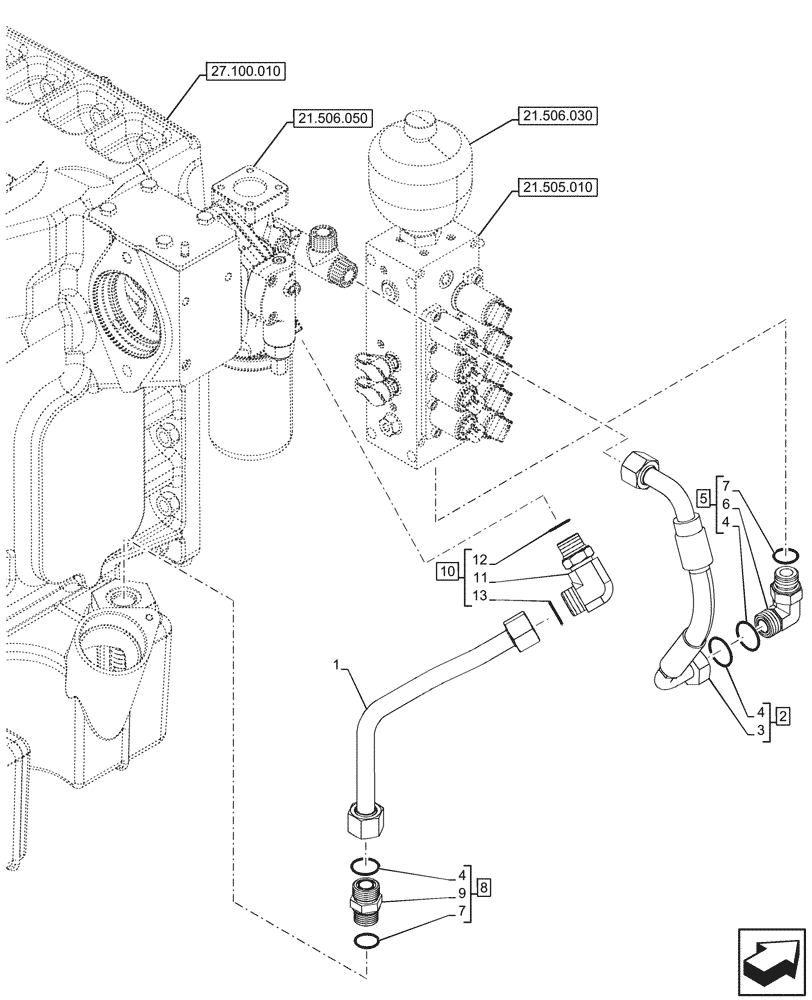

Запчасти Case IH OPTUM 300 CVT (21.506.040) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION, LINE (21) - TRANSMISSION

1

47705462

PIPE

By Pass Pipe

1шт.

2

47567601

PIPE

ASSY, from Hydraulic Pump to Dropbox, Incl 3, 4 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

5

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

ASSY, Incl 4 (Qty 1), 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

8

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 4 (Qty 1), 7 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

87722754

HYD CONNECTOR,M27 x 2

ASSY, Incl 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

14438185

O-RING,24mm ID x 3mm

1шт.

13

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
