Запчасти Case IH OPTUM 300 CVT (21.506.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION, PUMP (21) - TRANSMISSION

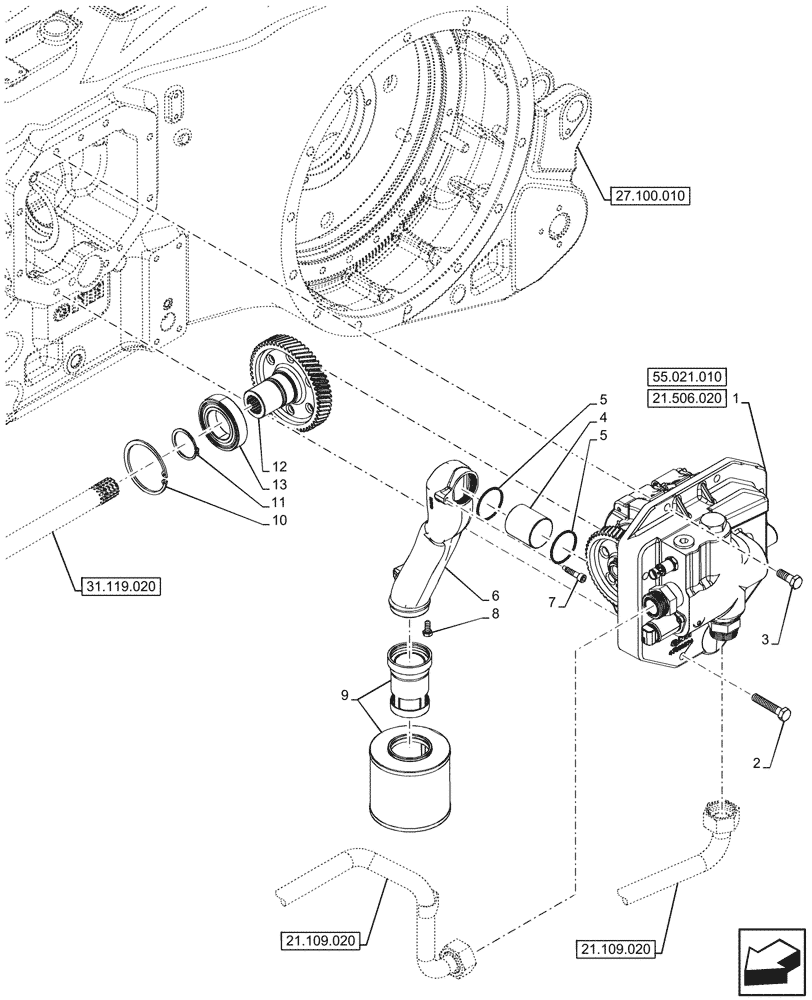

Схема запчастей Case IH OPTUM 300 CVT - (21.506.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, LUBRICATION, PUMP (21) - TRANSMISSION
21.506.020
9
2
5
7
6
3
5
11
1
12
4
8
13
10
21.109.020
21.109.020
55.021.010
27.100.010
31.119.020

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

ASSY, only Components available for Service

1шт.

2

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

4шт.

3

15540534

SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

4

47796875

TUBE

1шт.

5

14459580

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

6

47828678

DUCT

1шт.

7

47799040

SCREW,Hex, M6 x 1 x 28.8mm L

1шт.

8

16043414

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

1шт.

9

47815457

HYDRAULIC OIL FILTER,127mm OD x 134mm L

Strainer Filter, Suction

1шт.

10

11062475

LOCKING RING

1шт.

11

11069376

SNAP RING,M50, Ext

1шт.

12

47525887

GEAR,55T

Z 55

1шт.

13

87591960

BALL BEARING,50mm ID x 90mm OD x 20mm W

1шт.

Выбрано товаров: 13
