(21.505.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION CONTROL VALVE, COMPONENTS

Запчасти Case IH OPTUM 300 CVT (21.505.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION CONTROL VALVE, COMPONENTS (21) - TRANSMISSION

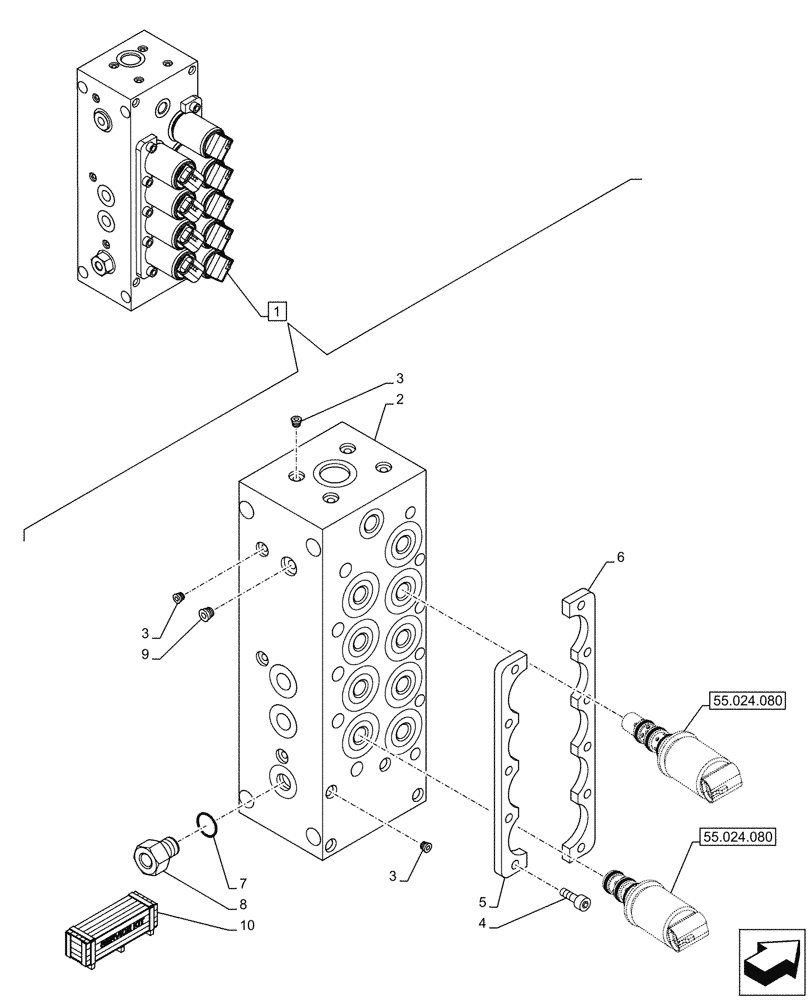

Схема запчастей Case IH OPTUM 300 CVT - (21.505.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION CONTROL VALVE, COMPONENTS (21) - TRANSMISSION
55.024.080
8
9
10
2
5
1
7
3
4
6
3
3
55.024.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47528388

HYDRAULIC MANIFOLD

ASSY, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Manifold, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Plug, 10mm DIA, Incl in 1

12шт.

4

NSS

NOT SOLD SEPARAT

Screw, M6 x 16mm, Incl in 1

11шт.

5

87683403

PLATE

1шт.

6

47134564

FIXING PLATE

1шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

8

NSS

NOT SOLD SEPARAT

Adaptor, M10 x 1mm, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, M16 x 1.5mm, Incl in 1

1шт.

10

47912889

GEARBOX

Transmission ASSY, Incl 1 - 9

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
