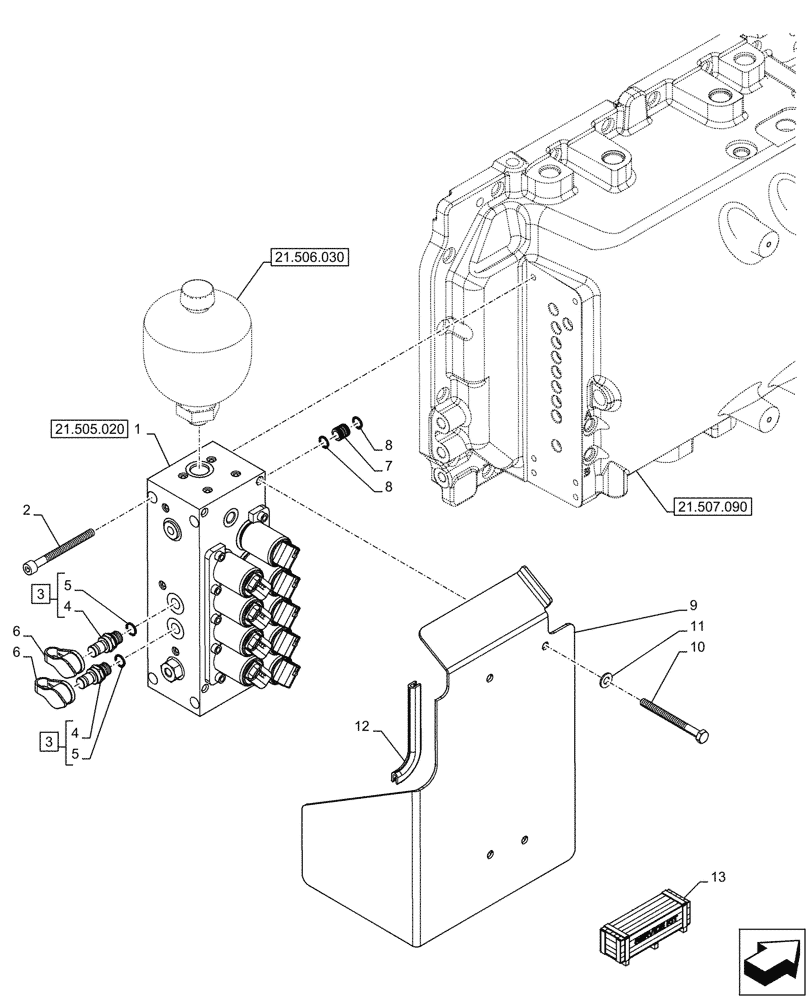

Запчасти Case IH OPTUM 300 CVT (21.505.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

1

47528388

HYDRAULIC MANIFOLD

ASSY

1шт.

2

14307124

SCREW,M8 x 1.25 x 90mm, Cl 8.8

4шт.

3

5185423

COUPLING

ASSY, Incl 4 (Qty 1), 5 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Quick Coupling, Incl in 3

2шт.

5

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

6

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

2шт.

7

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

10шт.

8

14453080

O-RING,0.426" ID x 0.07"

20шт.

9

47931732

COVER

1шт.

10

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

4шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

47931770

SEAL PROTECTION,127mm L

1шт.

13

47912889

GEARBOX

Transmission ASSY, Incl 1 - 8

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
