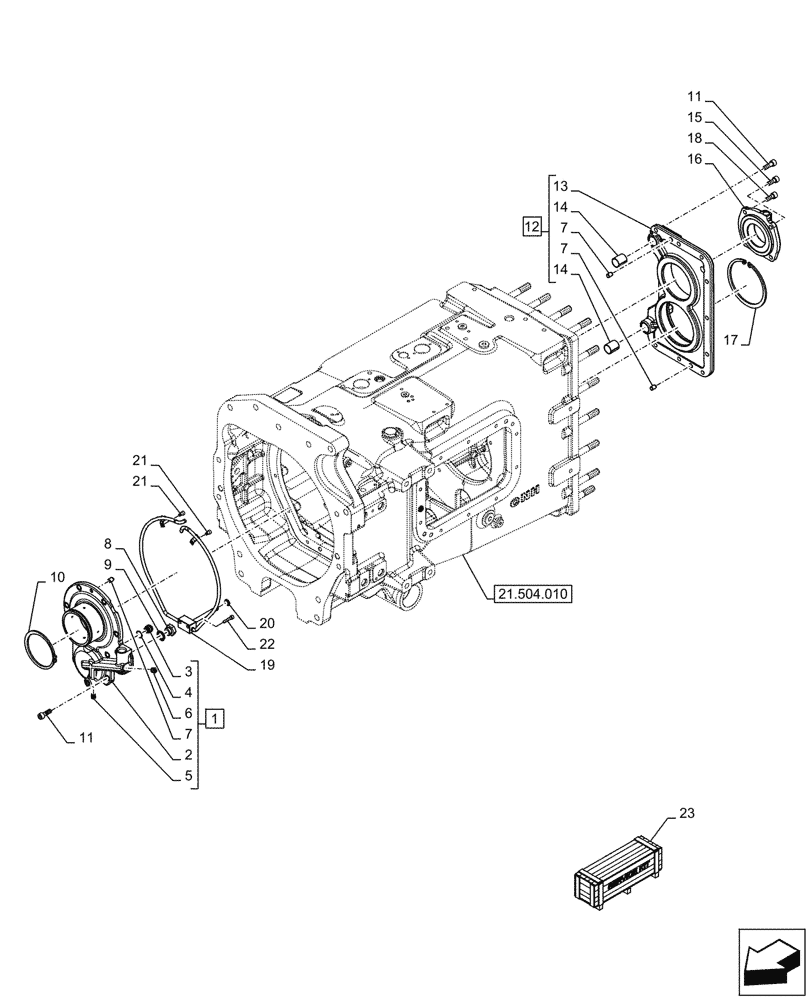

Запчасти Case IH OPTUM 300 CVT (21.504.040) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION HOUSING, COVERS (21) - TRANSMISSION

1

84231283

FLANGE COVER CAP

ASSY, Incl 2 - 6, 7 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Secondary Shaft Lubrication, Incl in 1

1шт.

4

79086720

SEAL,Split, 17mm ID x 19.8mm OD x 1.57mm Thk

1шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

1шт.

6

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

1шт.

7

5153109

DOWEL,10mm OD x 15mm L

3шт.

8

87545638

LUBE OIL NOZZLE

1шт.

9

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

10

11082176

SNAP RING,M105, Ext

M105, Ext

1шт.

11

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

18шт.

12

47536194

COVER ASSY

ASSY, Incl 7 (Qty 2), 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Cover, Incl in 12

1шт.

14

87552010

BUSHING,24mm ID x 27mm OD x 30mm

24mm ID x 27mm OD x 30mm

2шт.

15

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

16

87589206

MANIFOLD

1шт.

17

11076976

SNAP RING,M140, Int

1шт.

18

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

3шт.

19

87556073

TUBE

1шт.

20

577567

O-RING,9.92mm ID x 15.16mm OD x 2.62mm

1шт.

21

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

22

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

23

47912889

GEARBOX

Transmission ASSY, Incl 1 - 22

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
