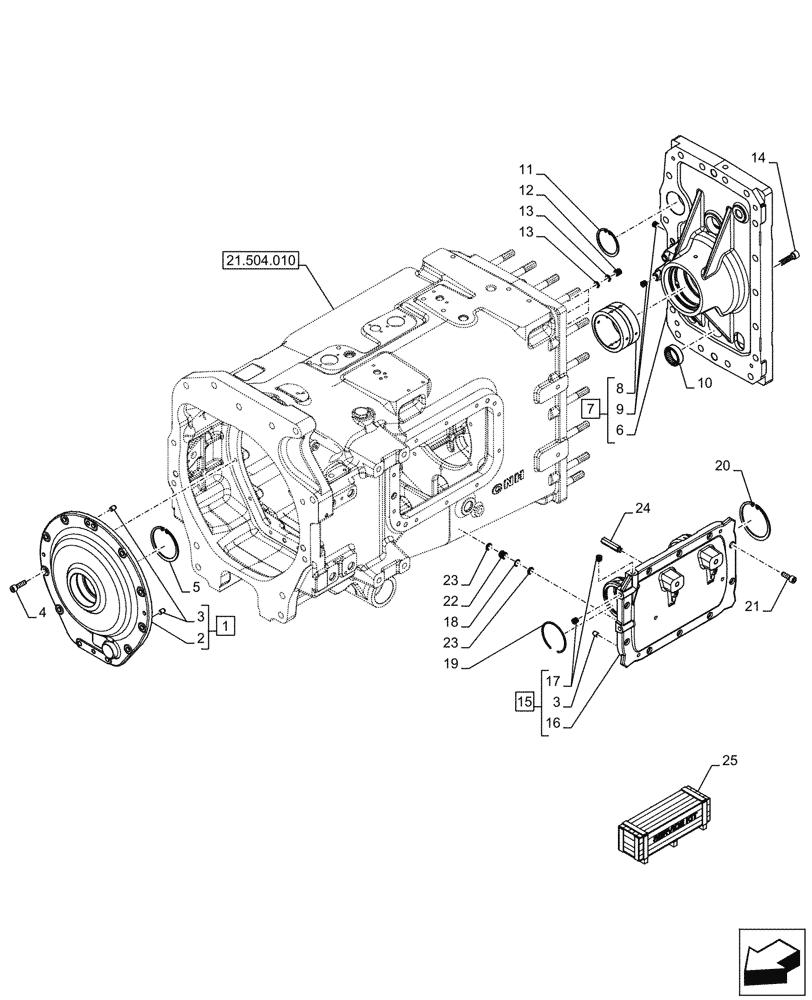

Запчасти Case IH OPTUM 300 CVT (21.504.030) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION HOUSING, COVERS (21) - TRANSMISSION

1

84123542

COVER

ASSY, Incl 2, 3 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Front Cover, Incl in 1

1шт.

3

5153109

DOWEL,10mm OD x 15mm L

4шт.

4

14307621

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

11шт.

5

11062475

LOCKING RING

1шт.

6

NSS

NOT SOLD SEPARAT

Rear Housing, Incl in 7

1шт.

7

47591531

SPACER,90mm ID

ASSY, Incl 6, 8, 9

1шт.

8

87528657

BUSHING,90mm ID x 110mm OD x 59,5mm L

1шт.

9

10275504

HEX PLUG

M12 x 1.25 x 11

7шт.

10

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

1шт.

11

11061576

SNAP RING,M72, Int

1шт.

12

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

3шт.

13

14453080

O-RING,0.426" ID x 0.07"

6шт.

14

14331434

SCREW,M12 x 1.25 x 45mm, Cl 10.9, Full Thd

2шт.

15

84414270

FLANGE COVER CAP

ASSY, Incl 3 (Qty 2), 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Incl in 15

1шт.

17

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

3шт.

18

13397776

SNAP RING,M16, Int

1шт.

19

87567449

SNAP RING,M82.6, Ext

1шт.

20

11062976

SNAP RING,Int, M100 x 3

1шт.

21

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

22

87567456

BUSHING,6.5mm ID x 14.4mm OD x 14mm L

1шт.

23

14453180

O-RING,12.42mm ID x 1.78mm

2шт.

24

87534205

NOZZLE,M10 x 1.25 x 62mm L

6шт.

25

47912889

GEARBOX

Transmission ASSY, Incl 1 - 24

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
