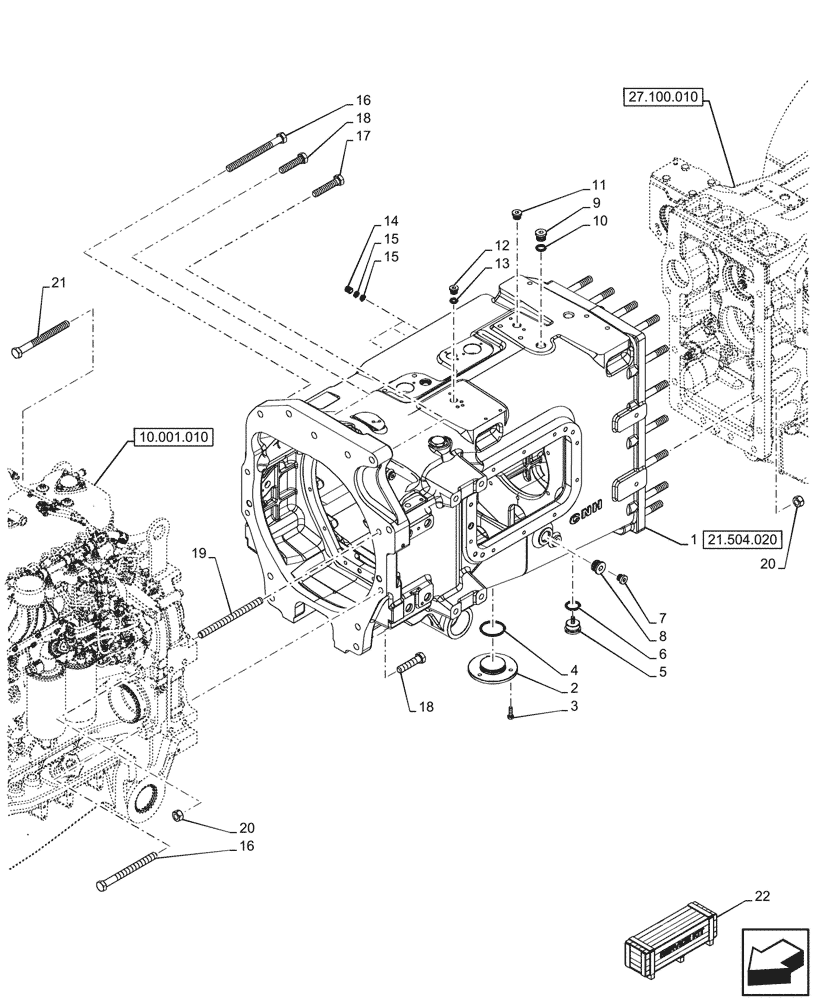

Запчасти Case IH OPTUM 300 CVT (21.504.010) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION HOUSING (21) - TRANSMISSION

1

47639634

HOUSING

ASSY

1шт.

2

47561563

PLUG

1шт.

3

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

4

14459880

O-RING,56.82mm ID x 2.62" Width

1шт.

5

87687750

MAGNETIC PLUG,Hex, M33 X 2 X 16mm

1шт.

6

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

7

10119011

PLUG,M27 x 2 x 20, Cl5.8

1шт.

8

1350997

PLUG,Rnd Hd, Int Hex Skt, M16 x 1.5 x 17.30mm, ORB

1шт.

9

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

10119411

PLUG,M18 x 1.5 x 12.00mm

1шт.

12

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

13

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

14

87561328

BUSHING,11mm ID x 13mm OD x 14mm L

3шт.

15

14453080

O-RING,0.426" ID x 0.07"

6шт.

16

15982831

BOLT,Hex, M16 x 1.5 x 180mm, Cl 10.9

3шт.

17

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

2шт.

18

15835234

BOLT,Hex, M16 x 1.5 x 70mm, Cl 10.9

6шт.

19

47613525

STUD,M16 x 1.5 x 211mm L, Cl 10.9

1шт.

20

12164121

NUT,M16 x 1.5, Cl 10

19шт.

21

11215936

BOLT,Hex, M16 x 1.5 x 170mm, Cl 10.9

2шт.

22

47912889

GEARBOX

Transmission ASSY, Incl 1 - 15

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
