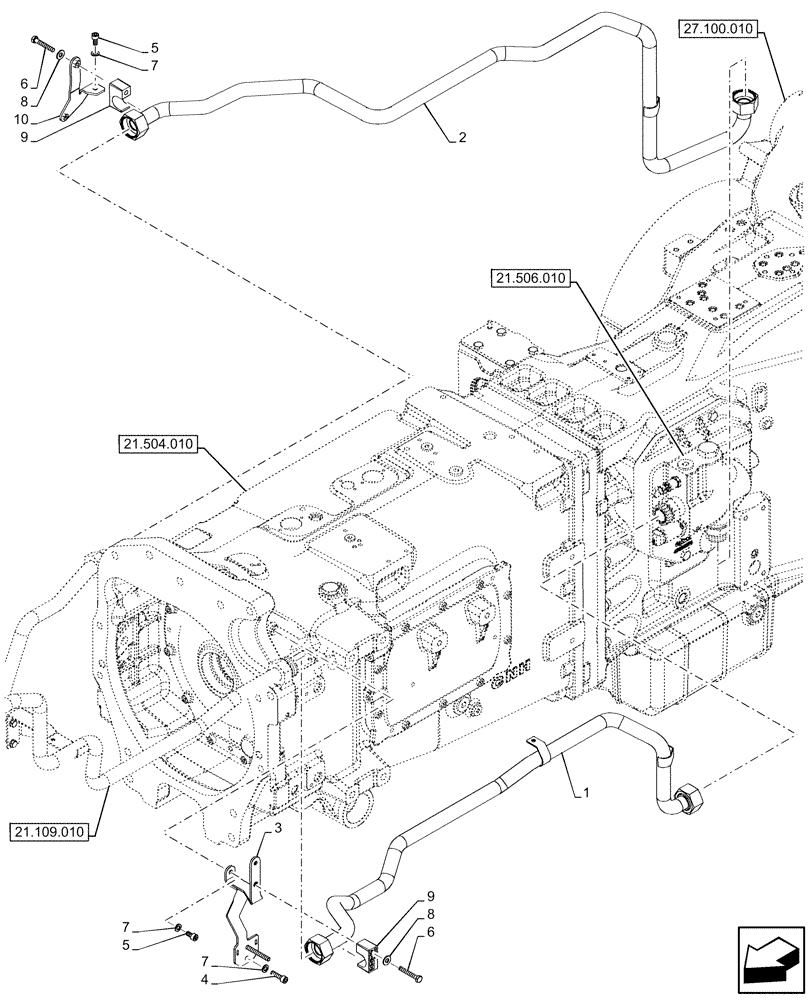

Запчасти Case IH OPTUM 300 CVT (21.109.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

1

47724044

PIPE

from Lubrication Pump to Oil Cooler Pipe

1шт.

2

47724046

PIPE

from Oil Cooler Pipe to Lubrication Pump

1шт.

3

47876612

BRACKET

1шт.

4

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

5

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

47620642

CLAMP BRACKET

2шт.

10

47766497

BRACKET

1шт.
