(21.109.010) - VAR - 391138, 758022, 759053 - TRANSMISSION, COOLING SYSTEM LINE

Запчасти Case IH OPTUM 300 CVT (21.109.010) - VAR - 391138, 758022, 759053 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION

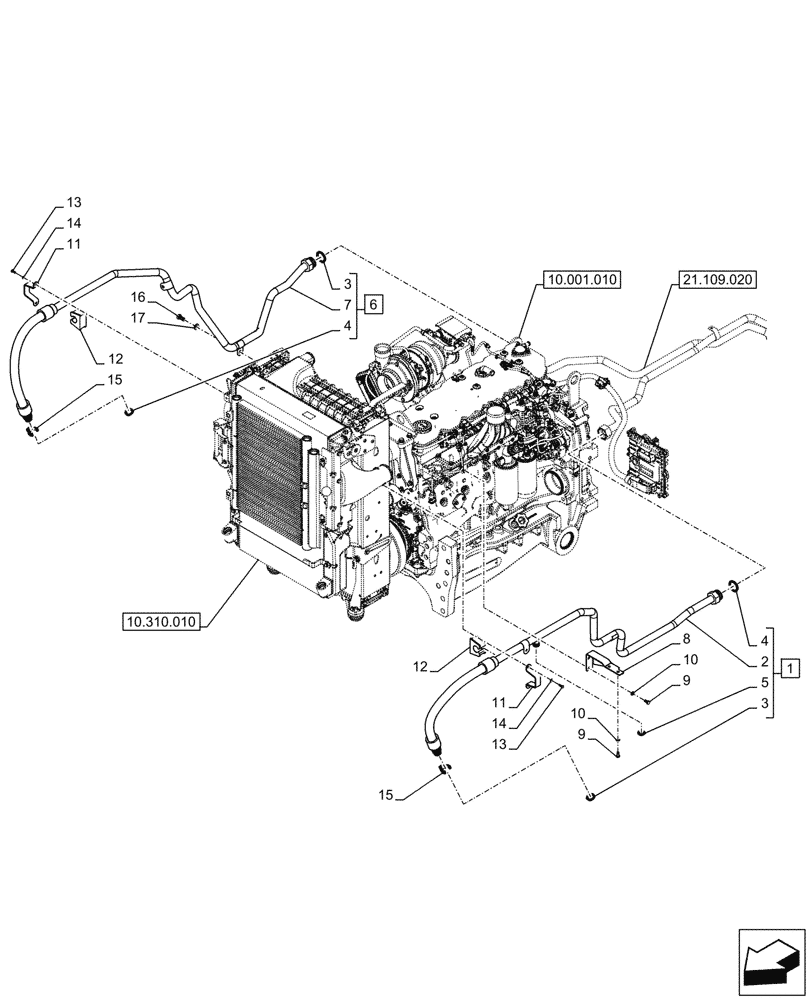

Схема запчастей Case IH OPTUM 300 CVT - (21.109.010) - VAR - 391138, 758022, 759053 - TRANSMISSION, COOLING SYSTEM LINE (21) - TRANSMISSION
10.001.010
11
2
11
13
15
4
15
17
8
5
3
12
12
7
9
4
1
3
10
10
6
14
9
16
14
13
21.109.020
10.310.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47767638

PIPE

ASSY, from Transmission Cooler Hose to Radiator, Incl 2, 3 (Qty 1), 4 (Qty 1), 5

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

84156021

O-RING,24mm ID x 2.0mm

2шт.

4

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

47932868

PIPE

ASSY, from Radiator to Transmission Cooler Hose, Incl 3 (Qty 1), 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Pipe, Incl in 6

1шт.

8

47926638

BRACKET

1шт.

9

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

11

47617494

BRACKET

2шт.

12

47617493

CLAMP,28mm ID x 35mm Thk

2шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

84156015

CLIP,28mm LP

2шт.

16

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

17

14496705

LOCK WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.
