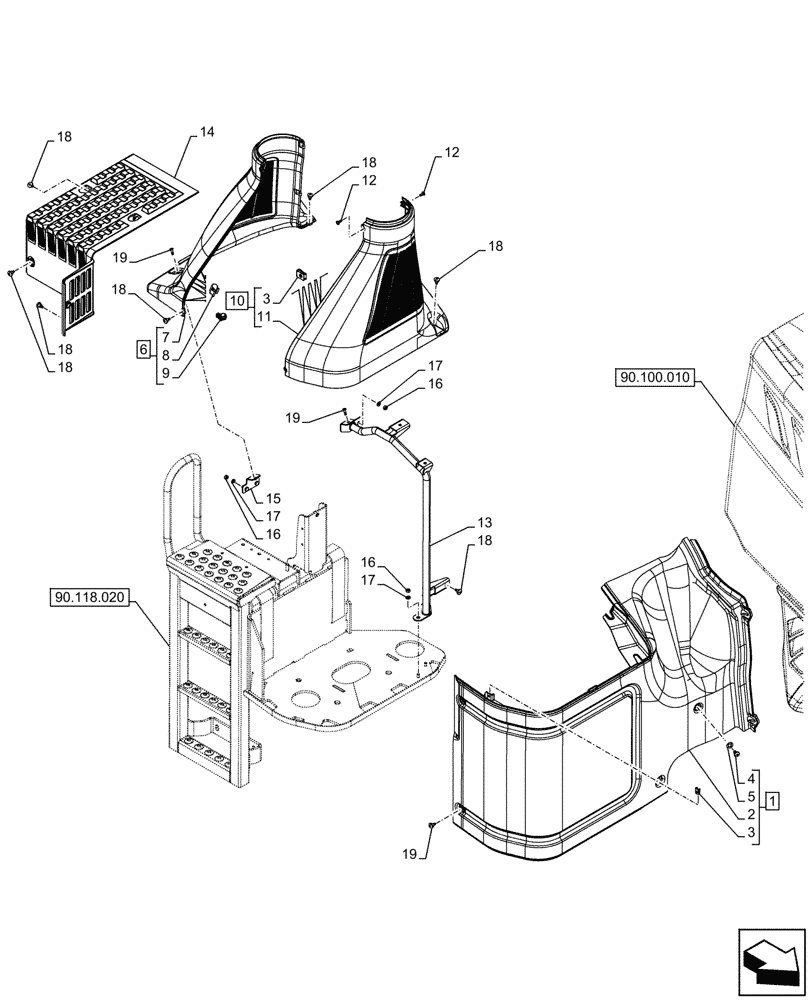

Запчасти Case IH OPTUM 300 CVT (10.500.040) - VAR - 391130, 758000, 759041 - SELECTIVE CATALITIC REDUCTION, COVER, STEP (10) - ENGINE

1

47702573

TRIM PANEL

ASSY, SCR, Incl 2, 3 (Qty 1), 4, 5

1шт.

2

NSS

NOT SOLD SEPARAT

Trim Panel, Incl in 1

1шт.

3

14189071

SPRING NUT,M6

M6

5шт.

4

84402052

BLANK-OFF PLUG,19mm OD

1шт.

5

14228374

COVER PLATE

1шт.

6

47702581

COVER

ASSY, SCR, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Trim Panel, Incl in 6

1шт.

8

84602244

CLIP,Clip Diameter 3/7mm

5шт.

9

47733125

CLIP

1шт.

10

47702598

COVER

ASSY, SCR, Incl 3 (Qty 4), 11

1шт.

11

NSS

NOT SOLD SEPARAT

Trim Panel, Incl in 10

1шт.

12

47988372

SCREW,M6 x 1 x 35.5mm L

5шт.

13

47715538

SUPPORT

1шт.

14

47702566

STEP

1шт.

15

47715539

BRACKET

1шт.

16

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

5шт.

17

84188434

WASHER,8.4mm ID x 16mm OD x 1.6mm Thk

5шт.

18

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

7шт.

19

87310098

BOLT,M6 x 20 Full SST BLO

7шт.
