(10.400.060) - VAR - 758770, 758772, 759305, 759307 - RADIATOR, SEAL, W/ FRONT PTO

Запчасти Case IH OPTUM 270 CVT (10.400.060) - VAR - 758770, 758772, 759305, 759307 - RADIATOR, SEAL, W/ FRONT PTO (10) - ENGINE

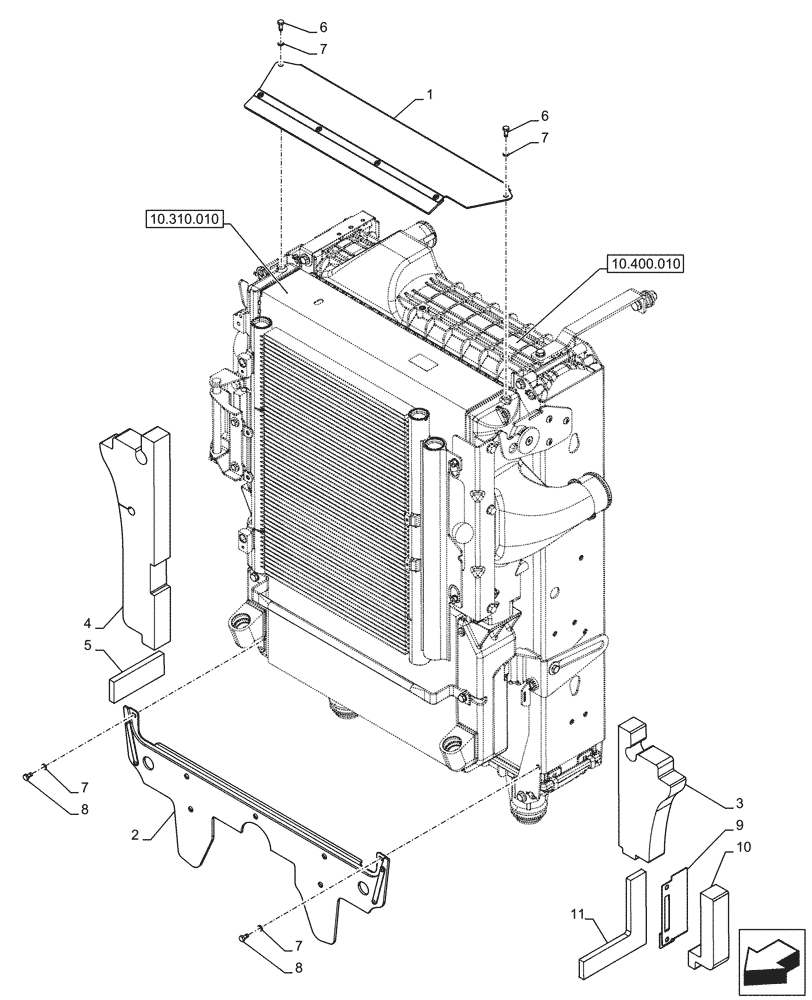

Схема запчастей Case IH OPTUM 270 CVT - (10.400.060) - VAR - 758770, 758772, 759305, 759307 - RADIATOR, SEAL, W/ FRONT PTO (10) - ENGINE
10.310.010
8
6
7
2
8
4
9
7
5
7
11
6
1
3
7
10
10.400.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47802820

BAFFLE

1шт.

2

47743730

DEFLECTOR

1шт.

3

47889927

GASKET,138mm H x 284.5mm L x 40mm Thk

1шт.

4

47778120

SEAL,28/16mm ID x 40mm Thk x 456mm L

1шт.

5

47809522

SEAL,46mm W x 12mm Thk x 126mm L

1шт.

6

10902211

BOLT,Hex, M6 x 16mm, Cl 5.8, Full Thd

2шт.

7

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

4шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

9

47890114

BRACKET

1шт.

10

47889931

GASKET,66.5mm H x 182.5mm L x 40mm Thk

1шт.

11

47889935

GASKET,164mm H x 164mm L x 12mm Thk

1шт.
