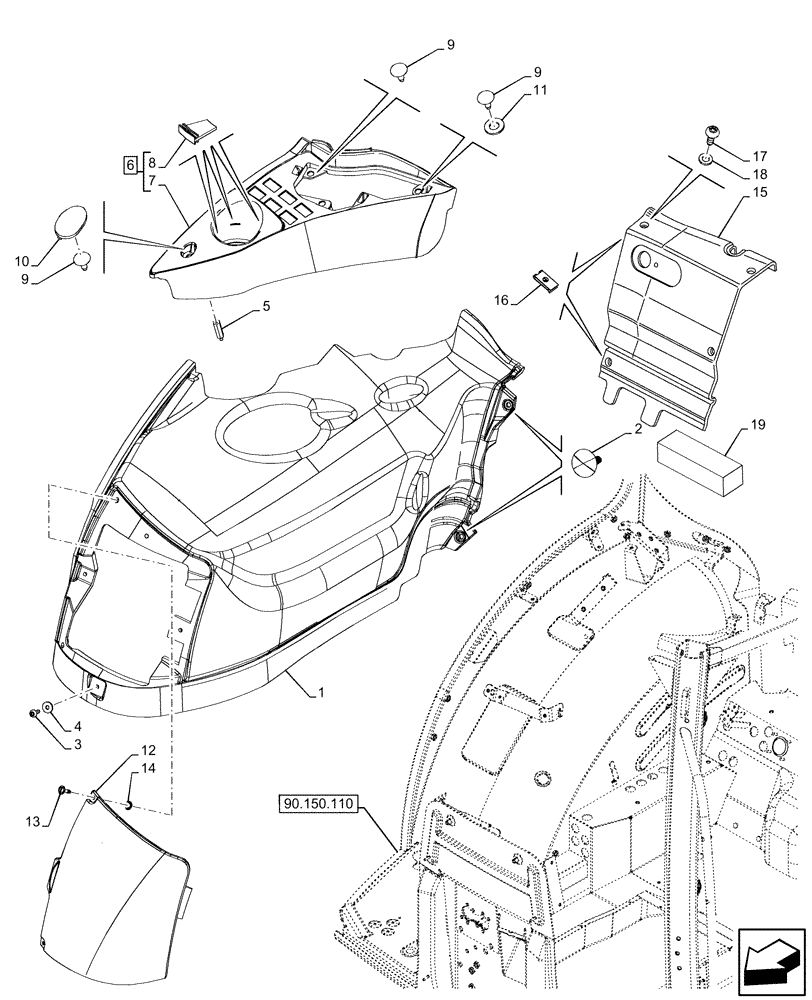

Запчасти Case IH OPTUM 270 CVT (90.160.040) - CAB INTERIOR TRIM, ELECTRONIC CONTROLS, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242720

TRIM PANEL

RH

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

87493058

SPACER,Hex, M6 x 1 x 47mm L

RH

1шт.

6

84206691

COVER

ASSY, RH, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, RH, Incl in 6

1шт.

8

304061A1

BUMPER,Rubber

3шт.

9

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.

10

87752306

BLANK-OFF PLUG,Grey

1шт.

11

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

12

87734672

COVER

Fuse & Relay Carrier

1шт.

13

84193550

FASTENER,Black

2шт.

14

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

15

84213367

PANEL

Electronics Module

1шт.

16

87567755

SPRING NUT,M5

2шт.

17

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

18

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

19

81870060

FOAM INSULATION

1шт.
