(90.156.060) - VAR - 391226 - WINDSHIELD, HEATED GLASS, COVER, LESS HIGH VISIBILITY WINDOW

Запчасти Case IH OPTUM 270 CVT (90.156.060) - VAR - 391226 - WINDSHIELD, HEATED GLASS, COVER, LESS HIGH VISIBILITY WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

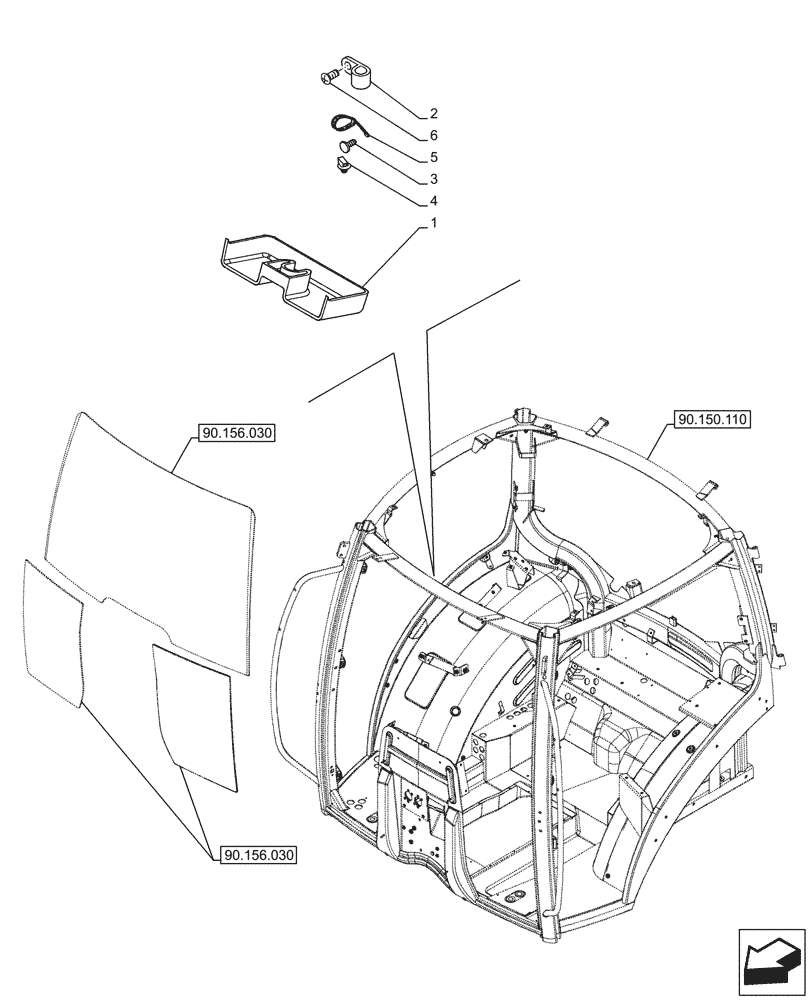

Схема запчастей Case IH OPTUM 270 CVT - (90.156.060) - VAR - 391226 - WINDSHIELD, HEATED GLASS, COVER, LESS HIGH VISIBILITY WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.110
2
3
6
4
5
1
90.156.030
90.156.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87711392

COVER

1шт.

2

86642442

CLAMP,3.2mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

3

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

4

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

5

14560287

CABLE TIE,207.00mm L

1шт.

6

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

4шт.

Выбрано товаров: 6
