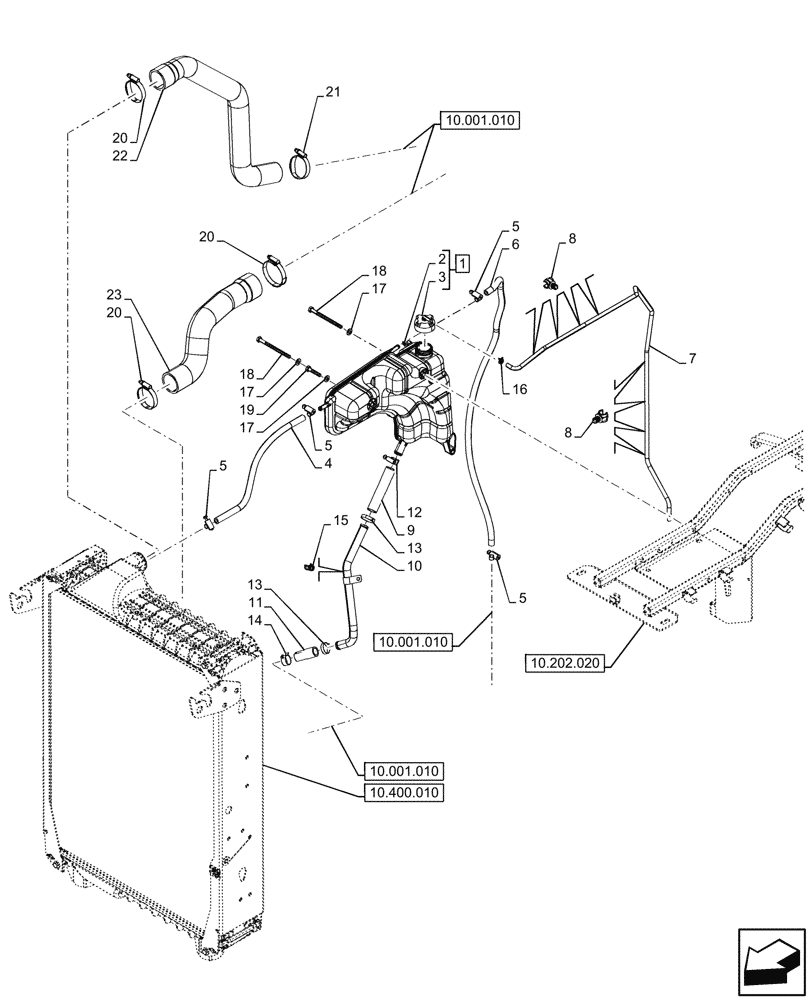

Запчасти Case IH OPTUM 270 CVT (10.400.020) - VAR - 391130, 758000, 759041 - RADIATOR, EXPANSION TANK, HOSE (10) - ENGINE

1

47719274

BOTTLE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Radiator Bottle, Incl in 1

1шт.

3

82022744

CAP,Female, Vented, Non-Locking

1шт.

4

47481752

HOSE,8.5mm ID, 416mm L

Radiator Degas

1шт.

5

87313783

CLAMP,10mm - 16mm, Worm Gear

4шт.

6

47938851

HOSE,8.5mm ID x 848mm L

Radiator

1шт.

7

84577790

HOSE,7mm ID x 1360mm L

Vent

1шт.

8

47556031

CLIP,0.7-3.5 Thk

7шт.

9

47584625

PIPE

Radiator

1шт.

10

47923429

PIPE

Radiator

1шт.

11

47923427

RADIATOR HOSE

Radiator

1шт.

12

82039344

HOSE CLAMP,20mm - 32mm

1шт.

13

13432970

CLAMP

2шт.

14

82019905

HOSE CLAMP,22 - 26mm X 12mm

1шт.

15

47556035

MOUNT

1шт.

16

47378045

CLAMP,10.1mm ID

1шт.

17

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

18

16045424

SCREW,Hex, M8 x 1.25 x 110mm, Cl 8.8

2шт.

19

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

20

87374233

COLLAR CLAMP,40 - 60mm

3шт.

21

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

1шт.

22

47747525

RADIATOR HOSE

Upper Radiator

1шт.

23

47482160

RADIATOR HOSE

Lower Radiator

1шт.
