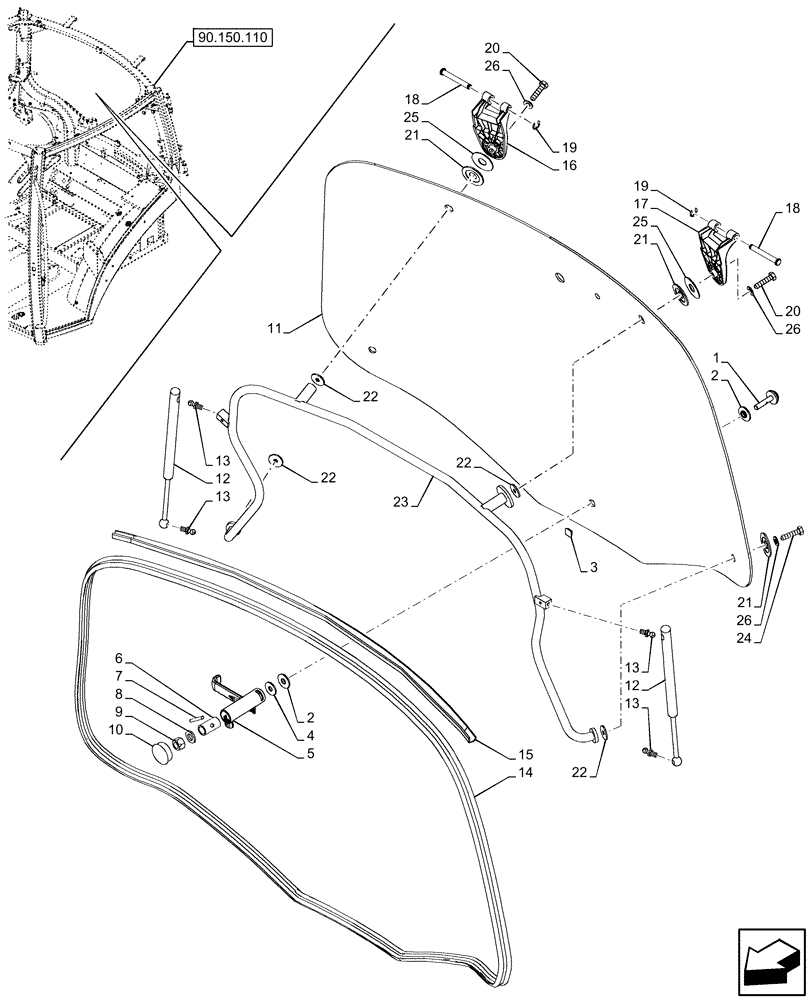

Запчасти Case IH OPTUM 270 CVT (90.156.010) - CAB, WINDOW, REAR, TINTED GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47464541

BOLT,M12 x 1.75 x 57mm

1шт.

2

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

2шт.

3

84390533

RUBBER BLOCK,19.8mm L x 19.8mm W x 6.4mm Thk

1шт.

4

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

1шт.

5

87541759

HANDLE

Back Window Handle

1шт.

6

83995351

SPACER,12mm ID x 16mm OD x 24.1mm L

1шт.

7

47435892

GROOVED PIN,4mm OD x 30mm L

1шт.

8

81865231

WASHER,13mm ID x 24mm OD x 3mm Thk

1шт.

9

81853287

NUT,M12 x 1.75, Cl 8

1шт.

10

83961986

PLUG,30mm

1шт.

11

84600181

CAB GLASS

Tinted, Rear Window

1шт.

12

82022486

GAS STRUT,486mm Extended, 286mm Compressed

2шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

14

82027998

WEATHERSTRIP,4125mm L

Rear Window

1шт.

15

82034552

RUBBER SEAL,1235mm L

1шт.

16

82034266

HINGE

Rear Window RH

1шт.

17

82034267

HINGE

Rear Window LH

1шт.

18

82033133

PIN,17mm OD x 96mm L

2шт.

19

11088171

SNAP RING,M11

2шт.

20

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

21

44995003

SEALING WASHER,20.0mm ID x 60.0mm OD x 3.0mm Thk

4шт.

22

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

4шт.

23

82030829

HANDLE

Rear Window

1шт.

24

82013304

SCREW,Pan HD, M8 x 22mm

2шт.

25

82022441

SHIM,22mm ID x 59.5mm OD x 2mm Thk

2шт.

26

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
