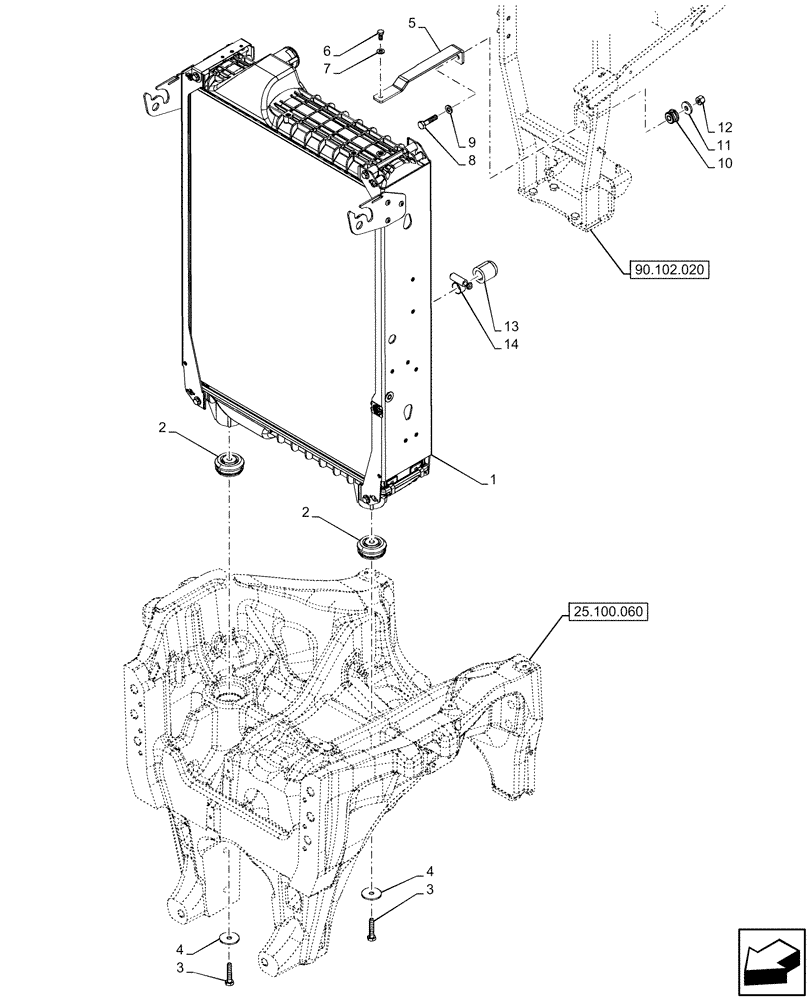

Запчасти Case IH OPTUM 270 CVT (10.400.010) - VAR - 391130, 758000, 759041 - RADIATOR (10) - ENGINE

1

47767379

RADIATOR

5 Row TP4, ASSY

1шт.

2

82023389

ISOLATOR,67mm OD x 35.5mm L

2шт.

3

11343821

BOLT,Hex, M10 x 1.25 x 50, 8.8

2шт.

4

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

5

47583460

BRACKET

1шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

7

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

8

11098621

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

1шт.

9

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

10

82009429

ISOLATOR

1шт.

11

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

12

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

13

83952371

CAP,15mm ID X 25mm

1шт.

14

82039343

HOSE CLAMP,16mm - 27mm

1шт.
