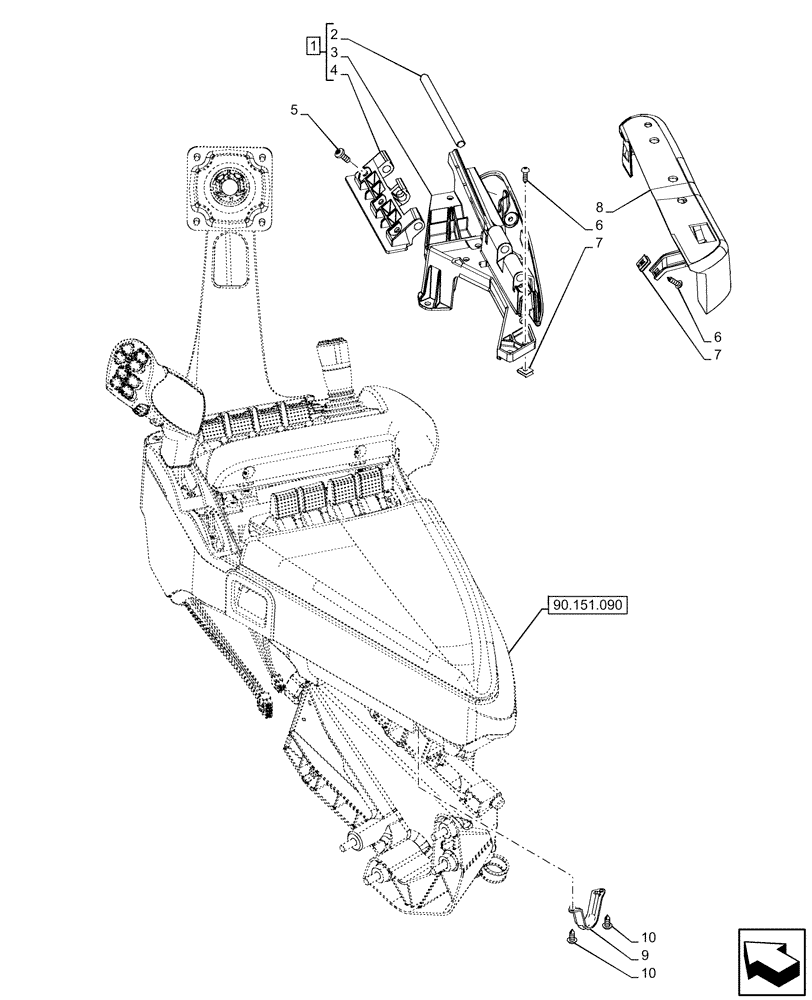

Запчасти Case IH OPTUM 270 CVT (90.151.070) - ARMREST CONTROLS EHR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84204558

HINGE

ASSY, Incl 2 - 4

1шт.

2

84147684

PIN,10mm OD x 144mm L

1шт.

3

84153062

HINGE

1шт.

4

87487262

HINGE

1шт.

5

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

6

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

7шт.

7

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

15шт.

8

47591424

COVER

Housing, PTO, CASE

1шт.

9

87579853

RETAINER,14.9mm W x 56.7mm L

1шт.

10

15902607

SELF-TAP SCREW,Cross Pan Hd, M3.50 x 1.3 x 9.50mm

2шт.
