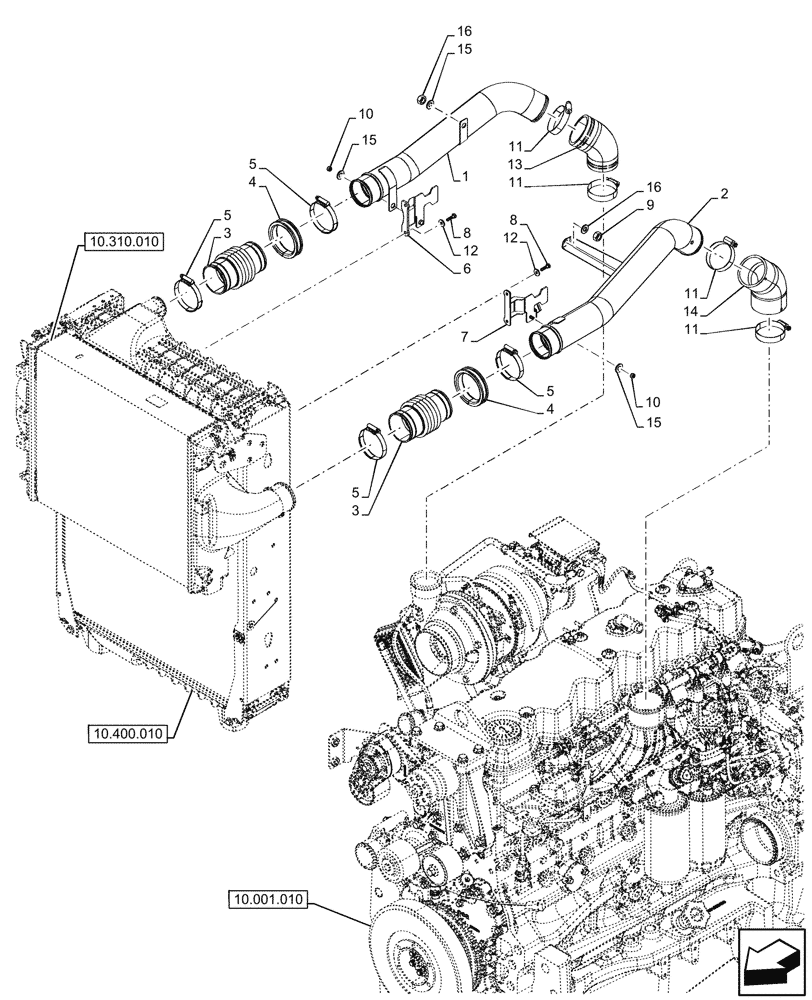

Запчасти Case IH OPTUM 270 CVT (10.310.020) - VAR - 391130, 758000, 759041 - INTERCOOLER LINE (10) - ENGINE

1

47915261

PIPE

Intercooler to Turbocharger

1шт.

2

47915258

PIPE

Intercooler to Engine Air Intake

1шт.

3

47744863

SLEEVE,70.5mm ID x 85.7mm OD x 213mm L

2шт.

4

47612426

GASKET,77mm ID x 97mm OD x 20mm Thk

2шт.

5

82036353

HOSE CLAMP,60 - 80mm X 14.5mm

4шт.

6

47915262

BRACKET

LH, CAC Tube Support

1шт.

7

47933584

BRACKET

RH, CAC Tube Support

1шт.

8

10902521

SCREW,Hex, M6 x 22mm, Cl 8.8, Full Thd

4шт.

9

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

10

10720114

NUT,Hex, M6 x 1

2шт.

11

76088567

HOSE CLAMP,2.75" - 3.62", Worm Gear

4шт.

12

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

13

47744862

HOSE,63.5/70.5mm ID x 100.2mm L

CAC Hot Side

1шт.

14

47744850

HOSE,70.5/75mm ID x 126.6mm L

CAC Cold Side

1шт.

15

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

3шт.

16

16102221

NUT,M8, Cl 10

2шт.
