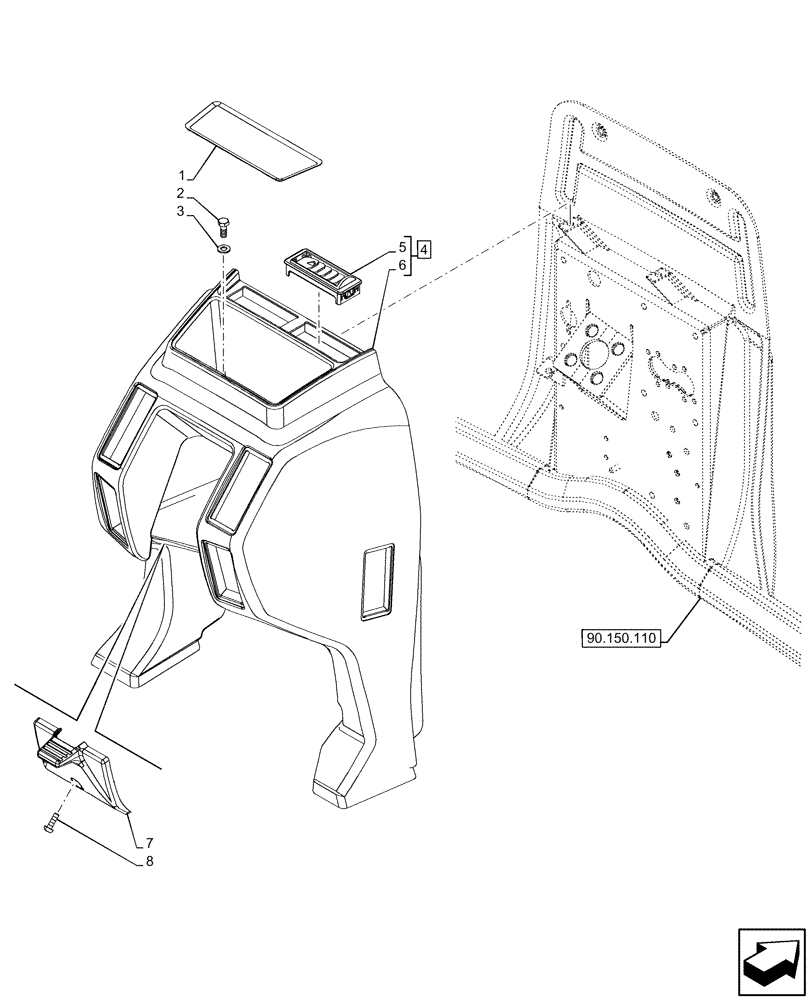

Запчасти Case IH OPTUM 270 CVT (90.151.050) - INSTRUMENT CLUSTER, FRONT, CONSOLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87518104

MAT

1шт.

2

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

87525680

CONSOLE

ASSY, Incl 5, 6

1шт.

5

363882A1

VENT

8шт.

6

NSS

NOT SOLD SEPARAT

Panel, Incl in 4

1шт.

7

47413729

COVER

Up Pedal Panel

1шт.

8

84187817

SCREW,Torx Pan Hd, M6 x 20mm, Cl 4.8

3шт.
