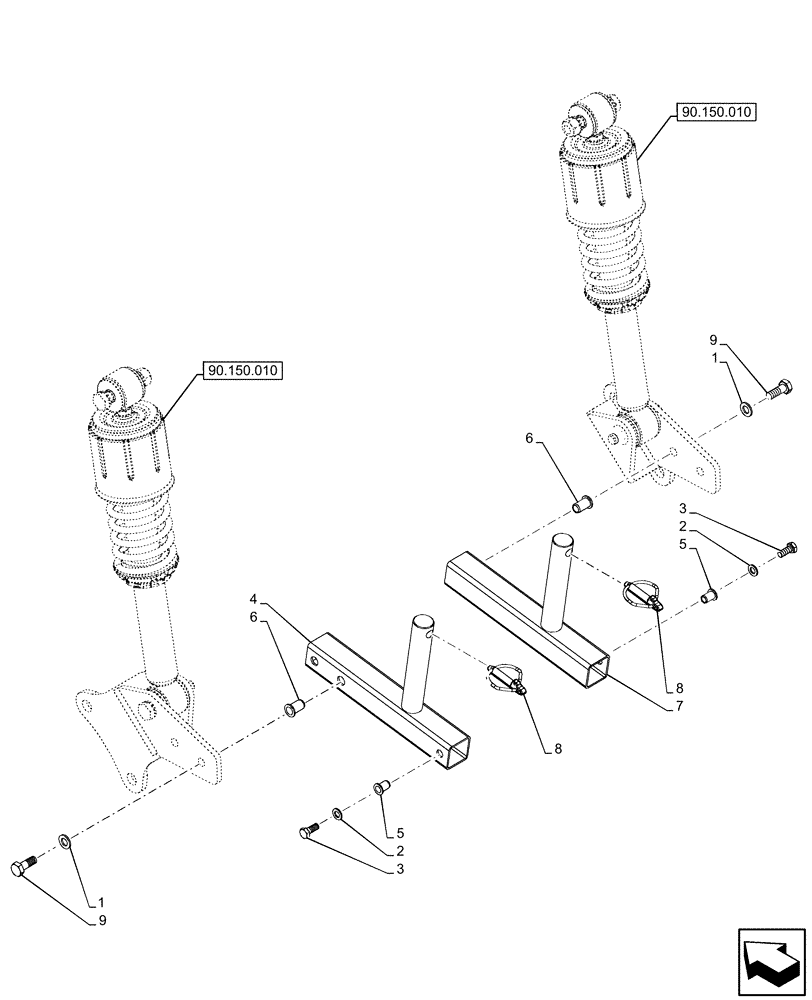

Запчасти Case IH OPTUM 270 CVT (90.150.120) - VAR - 758085 - CAB, SUSPENSION, STABILIZER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

4

47787301

SUPPORT

1шт.

5

15629111

RIVET,Flat, M8 OD x 17.5mm L

1шт.

6

15629311

RIVET,Flat, M10 OD x 1.5 x 23mm L

2шт.

7

47787297

SUPPORT

1шт.

8

47458993

LINCH PIN,49.2mm OD x 66mm L

2шт.

9

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.
