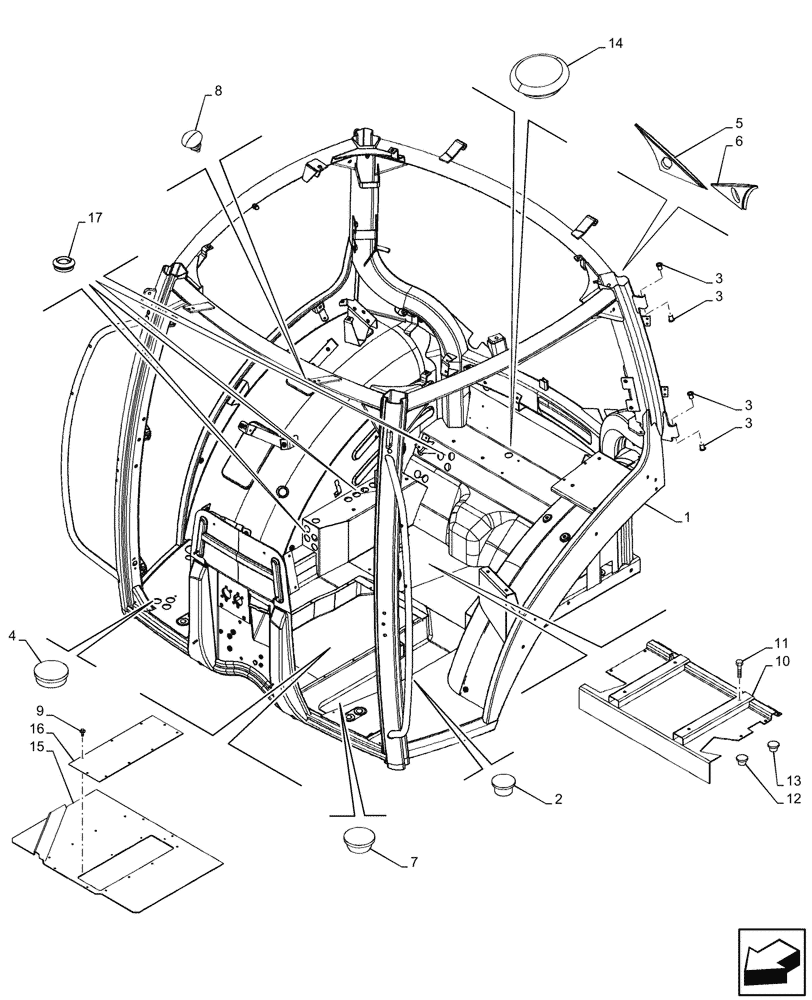

Запчасти Case IH OPTUM 270 CVT (90.150.110) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47735310

FRAME

1шт.

2

82003283

PLUG,10.5mm OD

8шт.

3

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

8шт.

4

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

5

82036801

PLUG

1шт.

6

82036800

PLUG

1шт.

7

82032838

PLUG,20.7mm ID x 25mm OD x 10.5mm Thk

2шт.

8

87716701

PLUG,Blanking, Snap, 6.40mm Dia

3шт.

9

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

13шт.

10

47772283

PLATE

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

84234592

PLUG,M20.7 x 10.5mm

2шт.

13

87341141

PLUG

3шт.

14

14507887

PLUG,25mm ID, 39mm OD

1шт.

15

87686394

CAB FLOOR

1шт.

16

87686522

COVER ASSY

1шт.

17

81862738

PLUG,M38 x 28 x 5mm

15шт.
