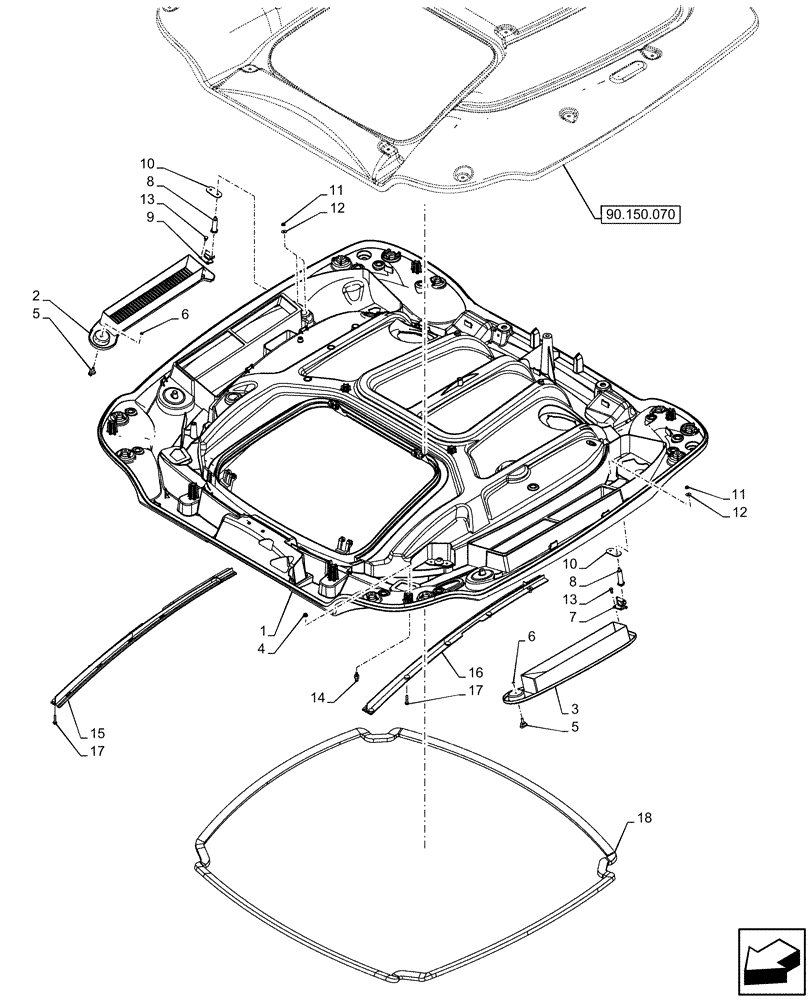

Запчасти Case IH OPTUM 270 CVT (90.150.080) - VAR - 758680 - ROOF LINING, W/ HIGH VISIBILITY PANELL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47865450

ROOF FRAME

with High Visibilty

1шт.

2

87725999

SUPPORT

Filter RH

1шт.

3

82033661

SUPPORT

Filter LH

1шт.

4

13046211

NUT,Flange Hex, M8

Hex, Flg Lock, M8

10шт.

5

84516592

KNOB

2шт.

6

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

7

82033690

HINGE

LH

1шт.

8

47619360

SPACER,M8 x 19mm OD x 63mm L

4шт.

9

82033679

HINGE

RH

1шт.

10

47619371

SEAL,77.5mm L x 37.0mm W x 3.0mm Thk

2шт.

11

14084814

FLANGE NUT,M8 x 1.25, Flg

4шт.

12

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

4шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

4шт.

14

47683611

STUD,M8, M10, Cl 8

Lamp Fixing

10шт.

15

87640268

GUIDE

RH

1шт.

16

87640267

GUIDE

LH

1шт.

17

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

10шт.

18

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

1шт.
