(90.150.070) - VAR - 758680 - CAB ROOF, W/ HIGH VISIBILITY PANEL

Запчасти Case IH OPTUM 270 CVT (90.150.070) - VAR - 758680 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

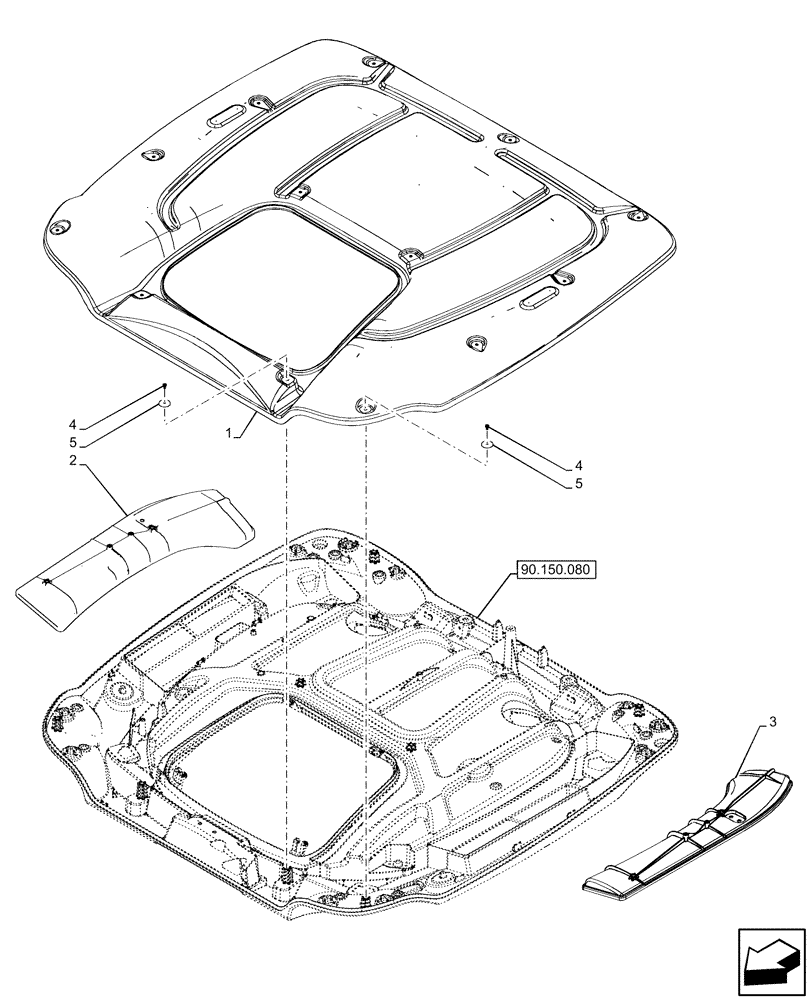

Схема запчастей Case IH OPTUM 270 CVT - (90.150.070) - VAR - 758680 - CAB ROOF, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.080
5
5
3
1
2
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47613457

ROOF

with High Visibility

1шт.

2

47619354

COVER

Filter RH

1шт.

3

47619357

COVER

Filter LH

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

13шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

6.70 mm ID x 19.00 mm OD

13шт.

Выбрано товаров: 5
