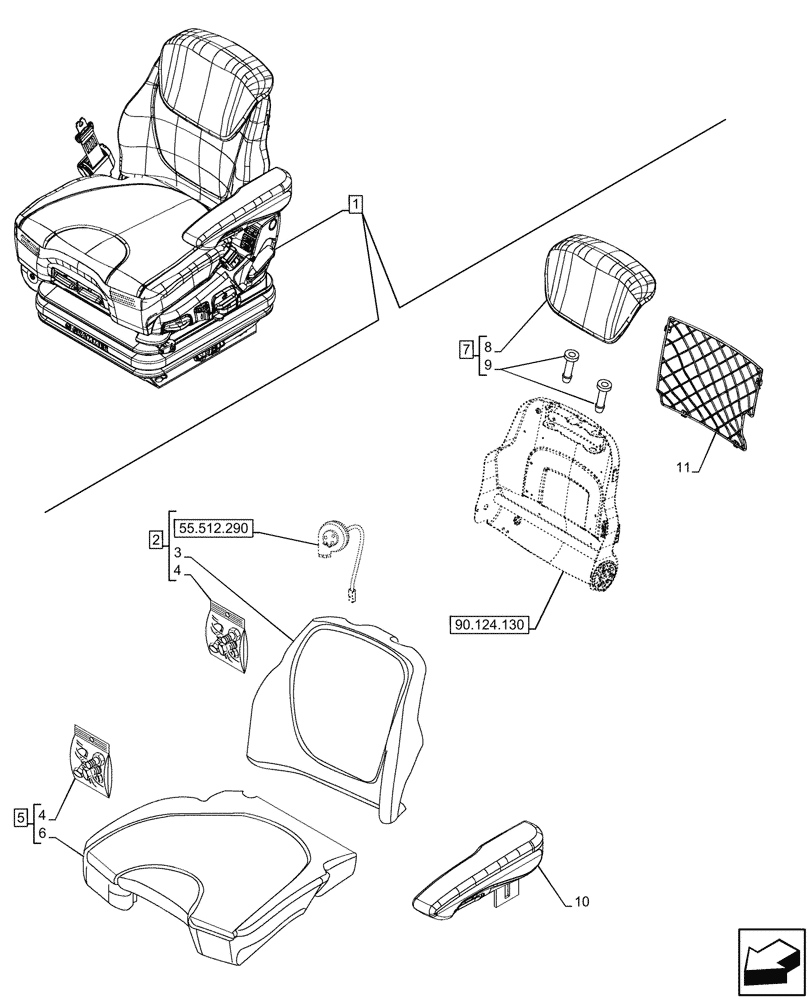

Запчасти Case IH OPTUM 270 CVT (90.124.120) - VAR - 758789 - SEAT, AIR SUSPENSION, COMFORT PACK 3, CUSHION, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Comfort Pack 3, Incl 2 - 11

1шт.

See also Driver Seat Components in Figures 55.512.280, 55.512.290, 90.124.130, 90.124.140, 90.151.190

1шт.

2

47897049

CUSHION

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Incl in 2

1шт.

4

84191200

SET OF PARTS

1шт.

5

47897045

CUSHION

ASSY, Incl 4, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Seat Cushion, Incl in 5

1шт.

7

47897041

SEAT HEADREST

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Backrest, Incl in 7

1шт.

9

84191112

GUIDE

1шт.

10

47897038

ARMREST

1шт.

11

47576107

KIT

1шт.
